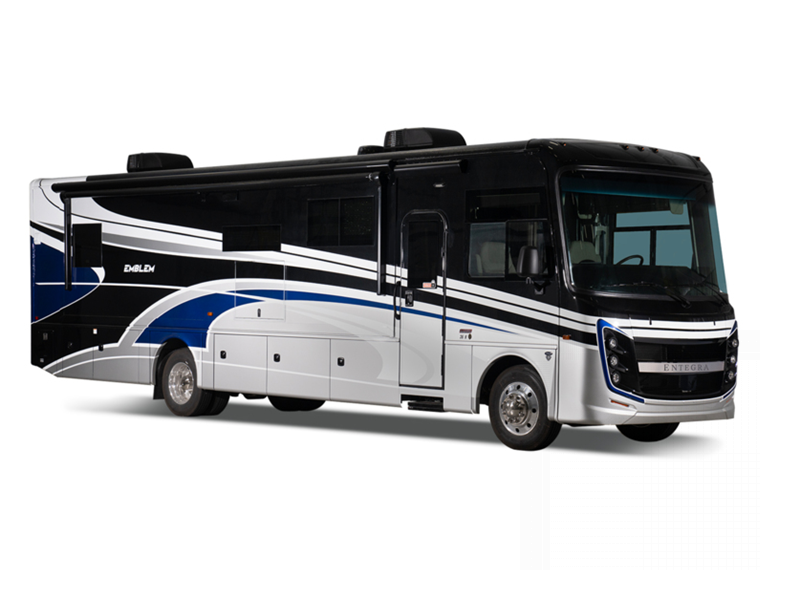

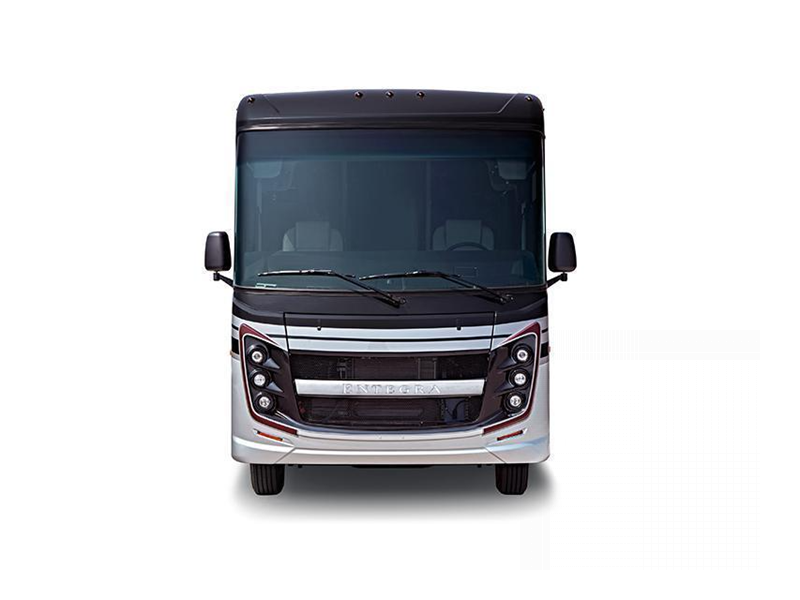

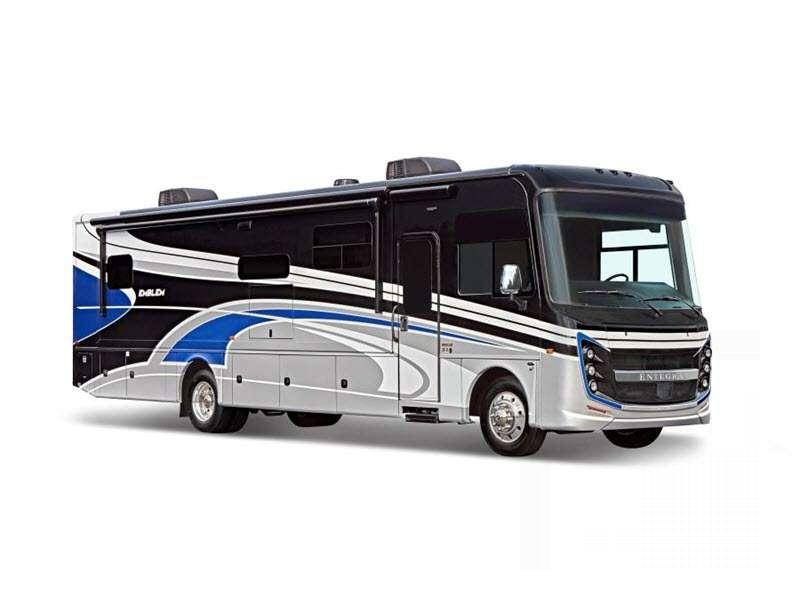

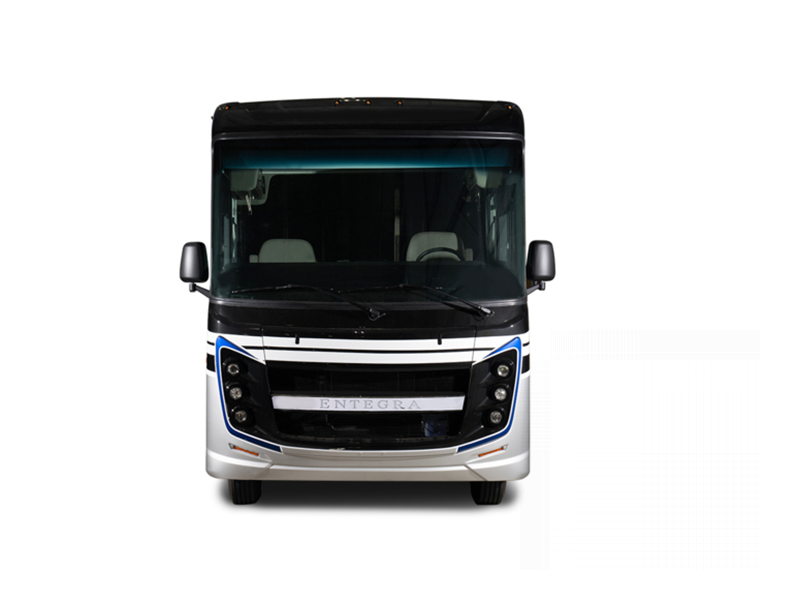

The Emblem Class A gas motorhome by Entegra Coach is livable and comfortable. With class-leading features, exquisite finishes, more technology and the E-Z Drive Elite package, the drive is just as wonderful as the destination!



Each is built on a Ford F53 chassis with a 7.3L V-8 350 HP engine, and includes front and rear disc, 4-wheel anti-lock brakes, and a 5,000 lb. rear hitch receiver with dual connector and 7-pin plug to be able to tow your commuter vehicle or toys. The cockpit offers a Pioneer 8" infotainment center with Apple CarPlay and Android Auto, backup and side-view cameras for safety when on the road and parking, and 6-way power and swivel driver/passenger seats to be able to enjoy the seating while driving or stopped. The interior offers luxurious amenities such as an electric fireplace, LED-lit solid surface kitchen countertops, a residential refrigerator, and a shower with decorative surround, glass door, skylight and light.



Get ready to enjoy the road and the destination the same in an Entegra Coach Emblem Class A gas motorhome that makes time on the road a highlight that you might never want to return home from!

  • Emblem 36H

    Emblem 36H Floorplan Image

    Take a Virtual Tour

    Entegra Coach Emblem Class A gas motorhome 36H highlights: Full Wall Slide ... more about Emblem 36H

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 38 ft 8 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 7 in
    Int Height 7 ft
    Interior Color Carbon, Fossil

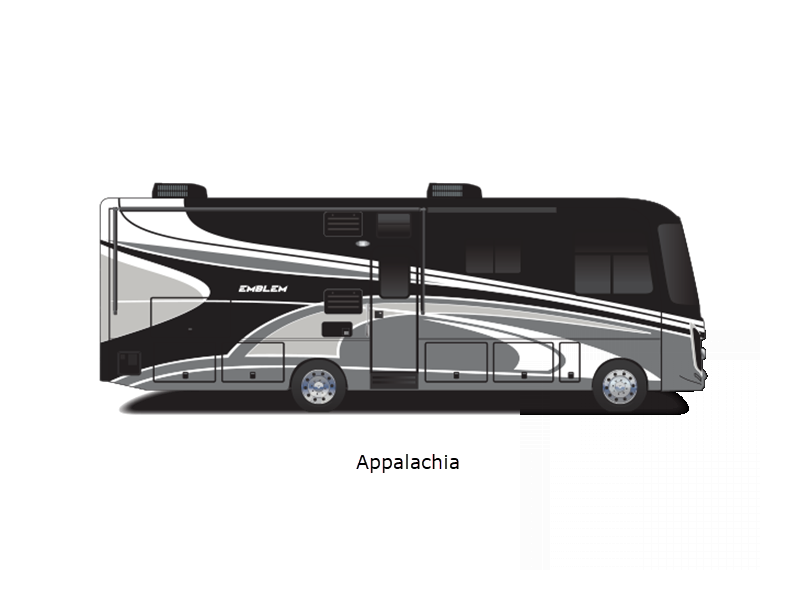

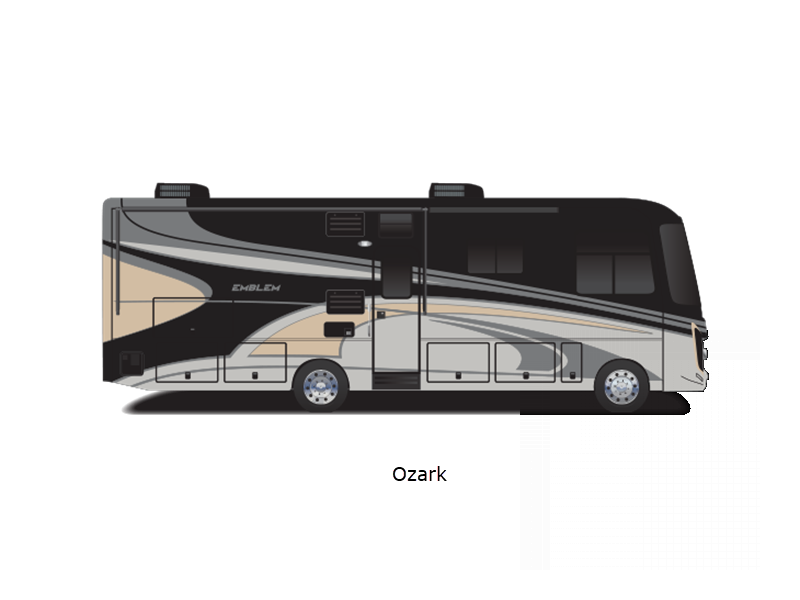

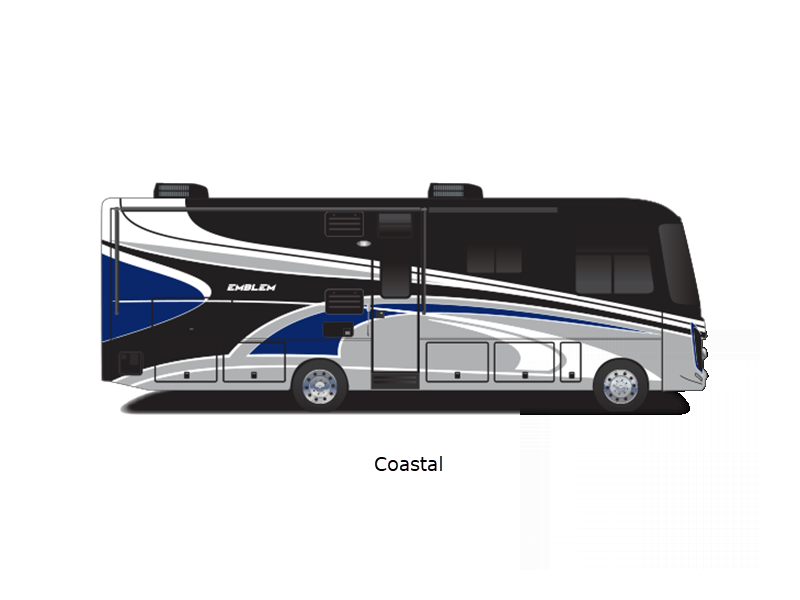

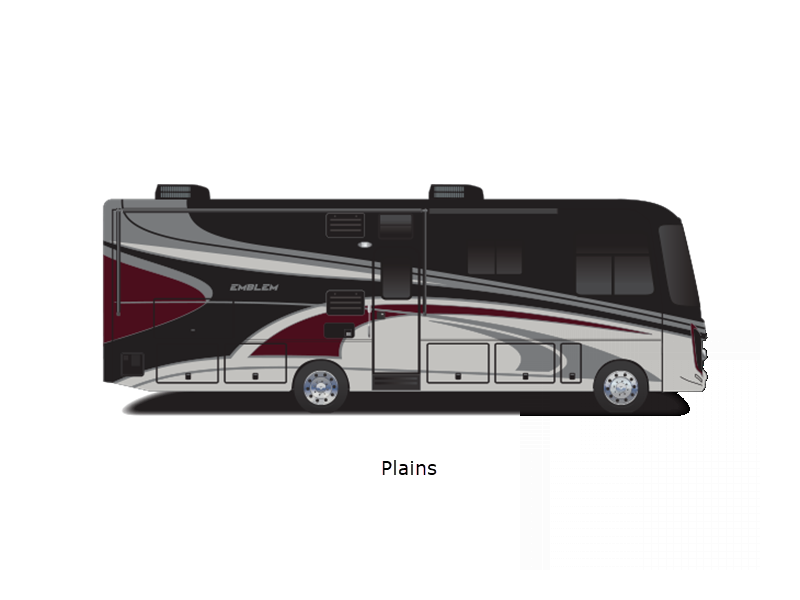

    Exterior Color Appalachia, Coastal, Ozark, Plains
    Hitch Weight 5000 lbs
    Gross Weight 24000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 255/80R22.5
    Furnace BTU 30000 btu
    Generator 5.5KW Onan Marquis Gold Genset
    Fuel Type Gasoline
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 252 in
    Number Of Bunks 1
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 36" x 42"
    Number of Awnings 1
    Axle Weight Front 9000 lbs
    Axle Weight Rear 15500 lbs
    LP Tank Capacity 24.5 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric
    AC BTU 28500 btu
    TV Info LR 50" LED HD Smart TV, BR LED HD Smart TV, Exterior LED HD Smart TV
    Awning Info 23' Electric w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 30000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Emblem 36T

    Emblem 36T Floorplan Image

    Take a Virtual Tour

    Entegra Coach Emblem Class A gas motorhome 36T highlights: Bath and a Half Bunk ... more about Emblem 36T

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 38 ft 8 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Carbon, Fossil
    Exterior Color Appalachia, Coastal, Ozark, Plains
    Hitch Weight 5000 lbs
    Gross Weight 24000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 31 gals
    Tire Size 255/80R22.5
    Furnace BTU 30000 btu
    Generator 5.5KW Onan Marquis Gold Genset
    Fuel Type Gasoline
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 252 in
    Number Of Bunks 3
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 36" x 42"
    Number of Awnings 1
    Axle Weight Front 9000 lbs
    Axle Weight Rear 15500 lbs
    LP Tank Capacity 24.5 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric
    AC BTU 28500 btu
    TV Info LR 50" LED HD Smart TV, BR LED HD Smart TV, Exterior LED HD Smart TV
    Awning Info 12' Electric w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 30000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Emblem 36U

    Emblem 36U Floorplan Image

    Take a Virtual Tour

    Entegra Coach Emblem Class A gas motorhome 36U highlights: Bath and a Half King ... more about Emblem 36U

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 38 ft 2 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Carbon, Fossil
    Exterior Color Appalachia, Coastal, Ozark, Plains
    Hitch Weight 5000 lbs
    Gross Weight 24000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 31 gals
    Tire Size 255/80R22.5
    Furnace BTU 30000 btu
    Generator 5.5KW Onan Marquis Gold Genset
    Fuel Type Gasoline
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 252 in
    Number Of Bunks 1
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 36" x 42"
    Number of Awnings 1
    Axle Weight Front 9000 lbs
    Axle Weight Rear 15500 lbs
    LP Tank Capacity 24.5 gals
    Water Heater Capacity 10 gal
    Water Heater Type Gas/Electric
    AC BTU 28500 btu
    TV Info LR LED HD Smart TV, BR LED HD Smart TV, Ext. LED HD Smart TV
    Awning Info 17' Electric w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 30000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Emblem Features:

Standard Features (2023)



Chassis

  • E-Z DRIVE™ ELITE: Computer-balanced driveshaft, Bilstein® steering stabilizer, Koni® shocks, variable-rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, 22.5 in. Michelin® tires
  • Automatic hydraulic leveling jacks
  • Ford® F53 chassis
  • 7.3L V-8 350 HP engine with 468 ft.-lb. torque
  • 6-speed automatic TorqShift® transmission with overdrive and tow haul mode
  • 210-amp alternator
  • G-rated highway tires-255/80R22.5
  • Front and rear disc, 4-wheel anti-lock brakes
  • 5,000-lb. rear hitch receiver with dual connector and 7-pin plug
  • 12V chassis battery
  • 80-gal. fuel tank

Construction

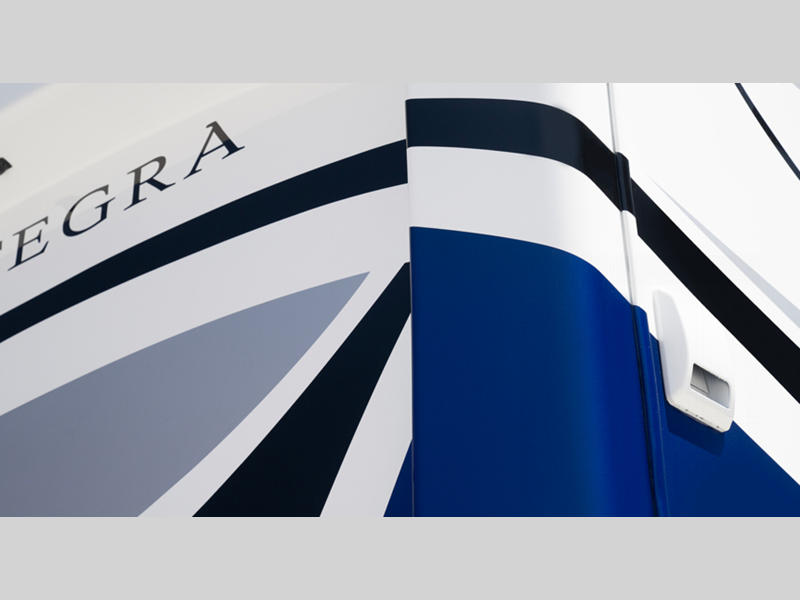

  • Premium Sikkens full-body paint
  • TuffShell™ vacuum-bond laminated floor
  • One-piece, seamless, fiberglass front and rear caps
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • One-piece, crowned fiberglass roof
  • TuffShell™ vacuum-bond laminated sidewalls

Heat, AC, Water & Power

  • 15,000-BTU A/C unit with heat pump and second 13,500-BTU A/C unit
  • Onan® Marquis Gold Genset 5,500-watt gas generator with auto-gen start
  • 2,000W inverter
  • 50 amp electrical service
  • 10 gal. gas/electric water heater
  • Transfer switch with reverse polarity protection
  • (2) 6V AGM (220Ah) house batteries on slideout tray
  • 30,000-BTU auto-ignition ducted furnace
  • 24.5-gal. propane tank (83-lb.) with LP quick-connect hookup
  • Thetford® Sani-Con® Turbo Macerator system
  • Winterization drain system
  • Black tank flush
  • 12V demand water pump
  • Water filtration system

Exterior

  • Frameless windows
  • Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket

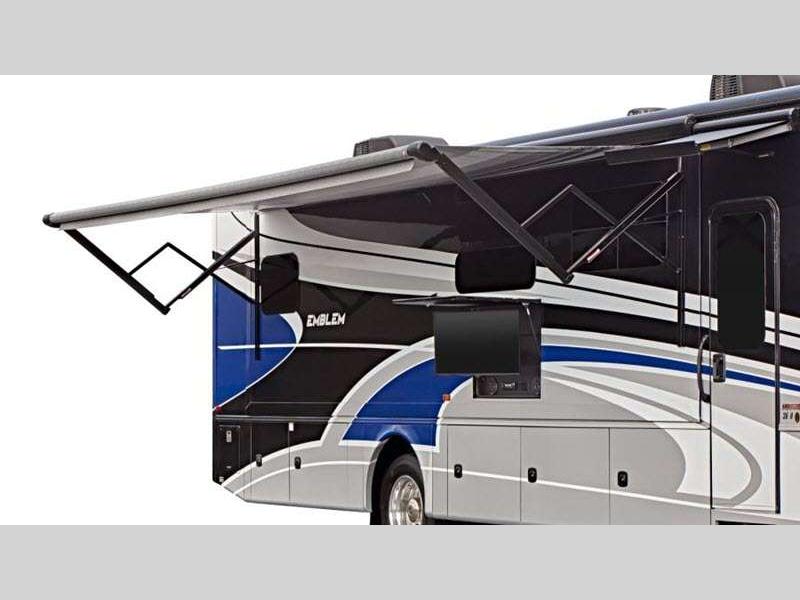

  • Electric patio awning with LED lights
  • Slide out awning(s)
  • 200W solar panel with dual controller

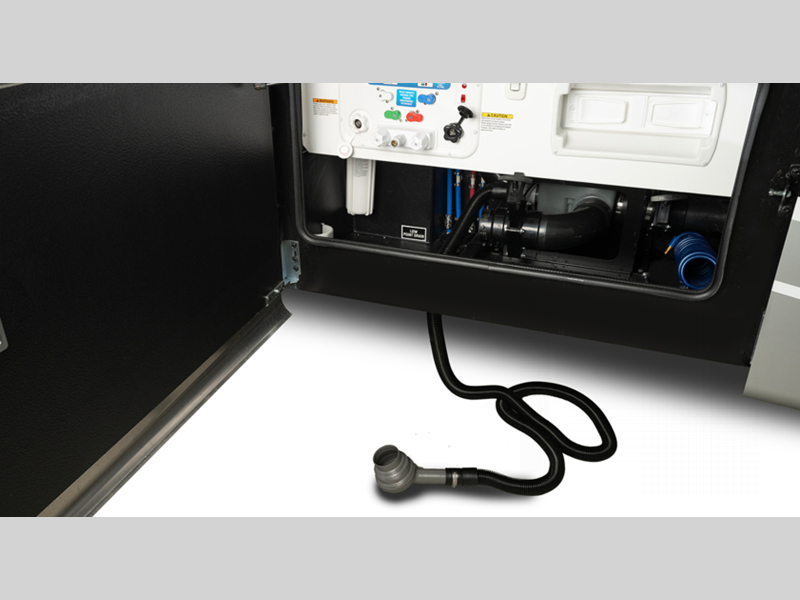

  • Exterior utility center
  • Outside shower

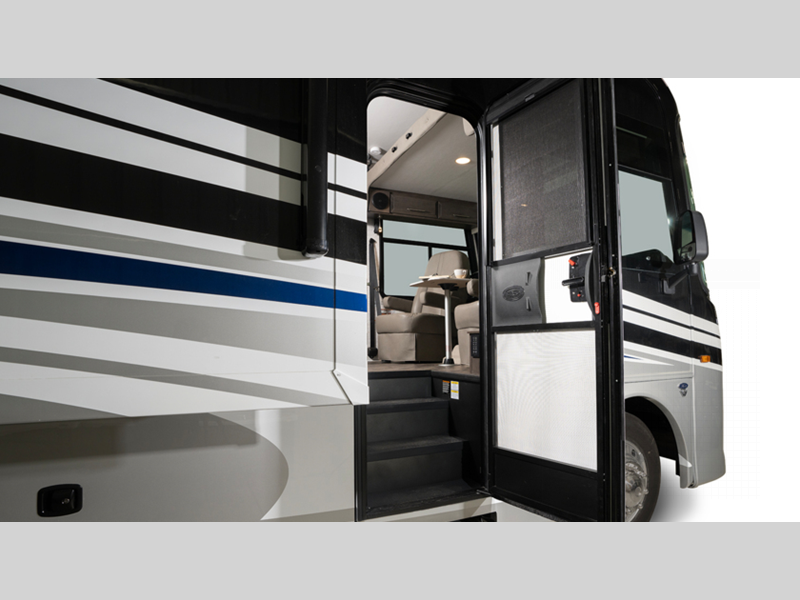

  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step
  • Lockable pass-through storage compartments with metal slam latches

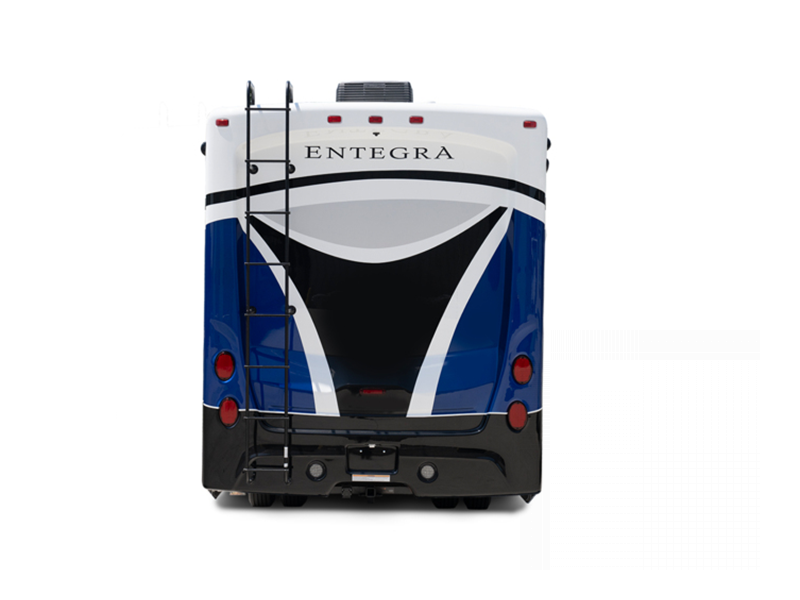

  • Roof ladder
  • Third brake light
  • Prep for satellite dish

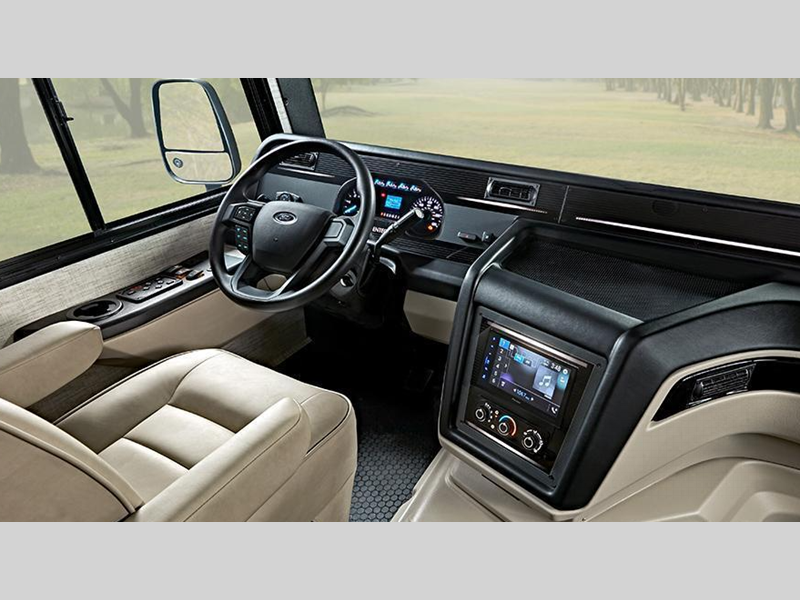

Cockpit

  • Pioneer® 8 in. infotainment center with Apple CarPlay® and Android Auto™
  • Backup and side-view cameras
  • Removable driver/passenger cockpit table; A/C and cruise control
  • Power front privacy shade with manual side privacy shades
  • 120-in. panoramic windshield
  • 6-way power and swivel driver/passenger seats
  • Soft-touch, vinyl-wrapped automotive dash
  • Tilt steering wheel
  • Auxiliary start

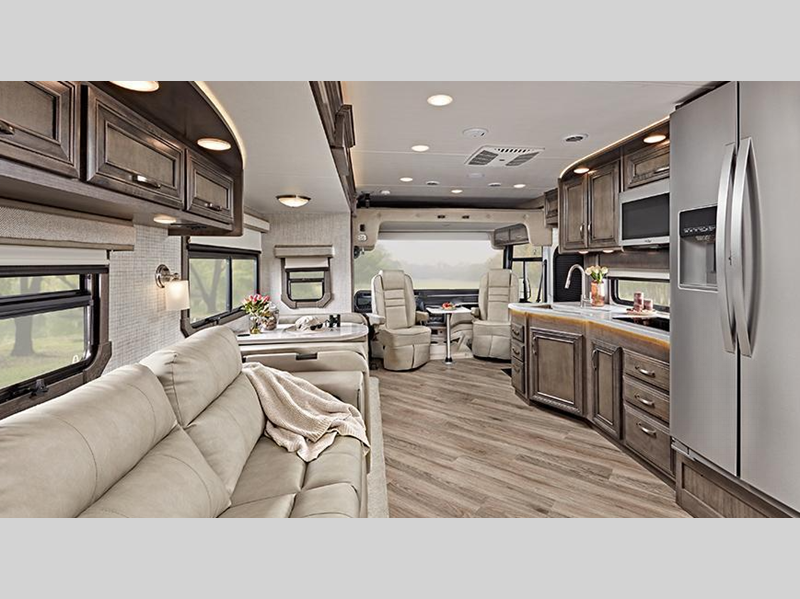

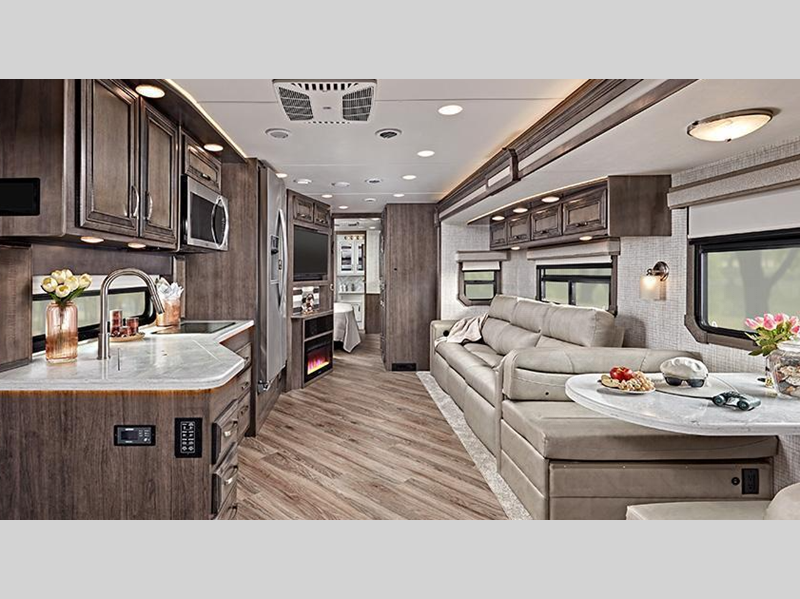

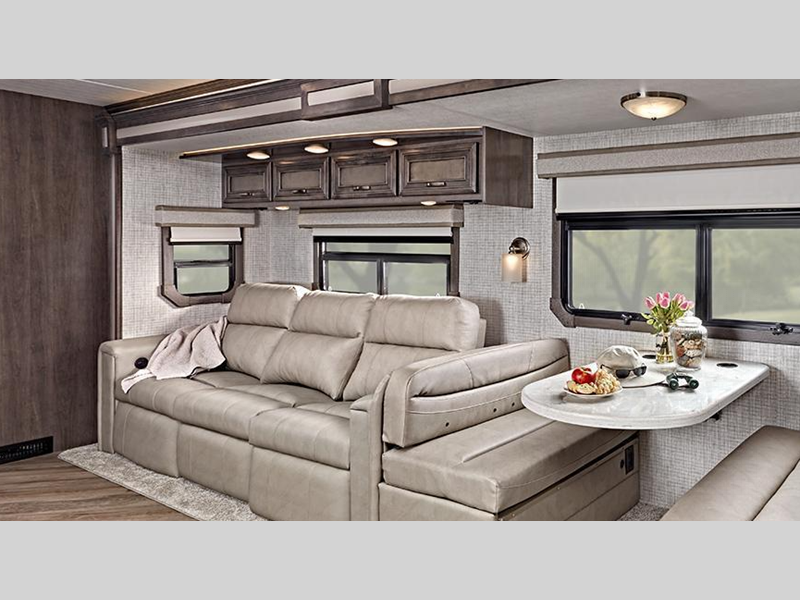

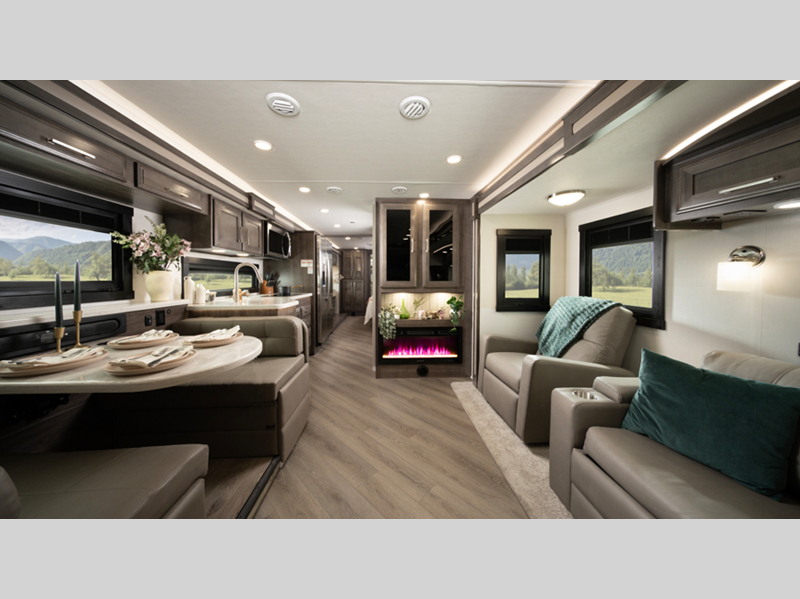

Interior

  • LED HD Smart TV in living area
  • Day/night roller shades in living area
  • Electric fireplace
  • Firefly Multiplex system
  • 84-in. interior ceiling height with padded vinyl ceiling
  • High-intensity recessed LED ceiling lights
  • Vinyl plank flooring
  • LED-lit hardwood fascia
  • Hardwood cabinet doors and drawers with deluxe hidden cabinet hinges
  • Cable TV hookup with RG-6 coax
  • Winegard 2.0 Wifi/4G antenna
  • Bunks with industry-exclusive, 300-lb. capacity each, with wall-mounted tablet holders (36T)

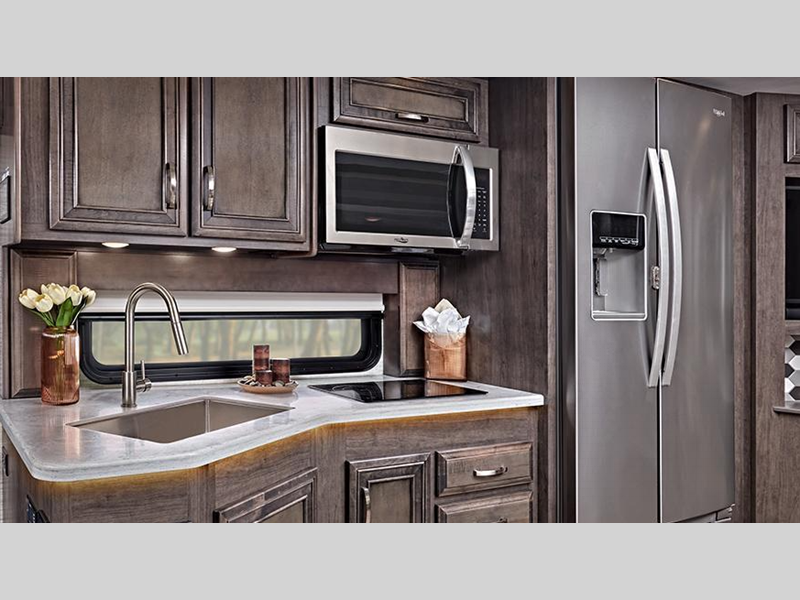

Kitchen

  • LED-lit, solid-surface kitchen countertops
  • Recessed stainless steel sink with sink covers
  • Ball-bearing drawer guides
  • Entegra-exclusive, easy-operation legless dinette table
  • Wood-framed kitchen window with spice cabinets
  • Residential refrigerator
  • 2-burner induction cooktop
  • Residential-size convection microwave oven

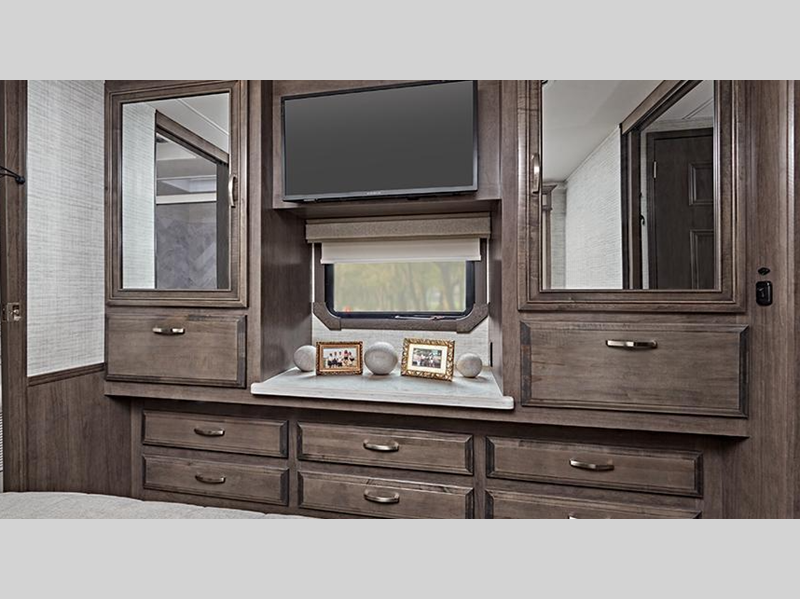

Bedroom

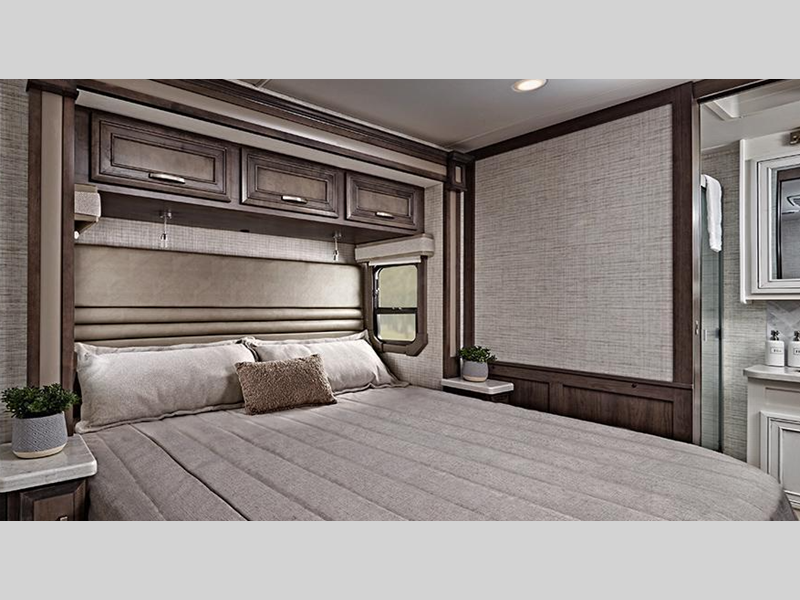

  • Walk-around, King-size bed with bedspread and nightstands
  • USB port and wireless charging in nightstands
  • Under-bed storage (select models)
  • LED HD Smart TV in bedroom
  • Large wardrobes

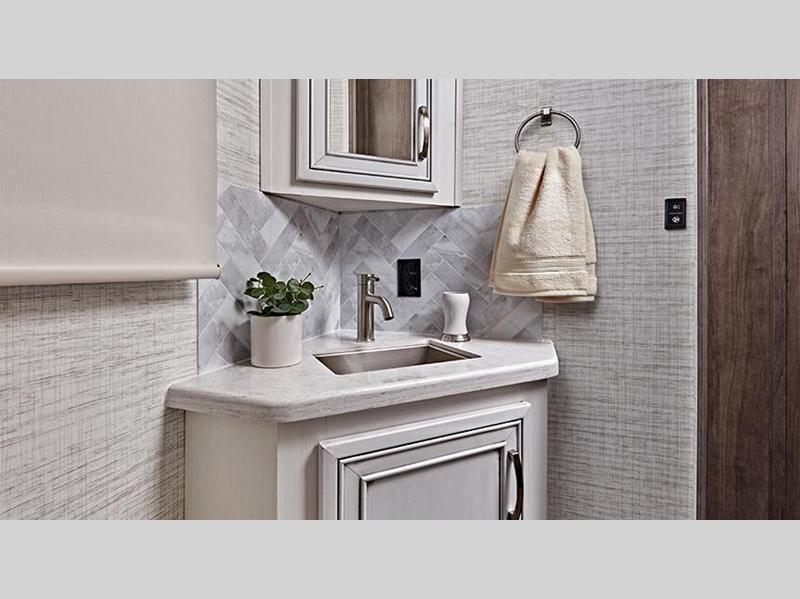

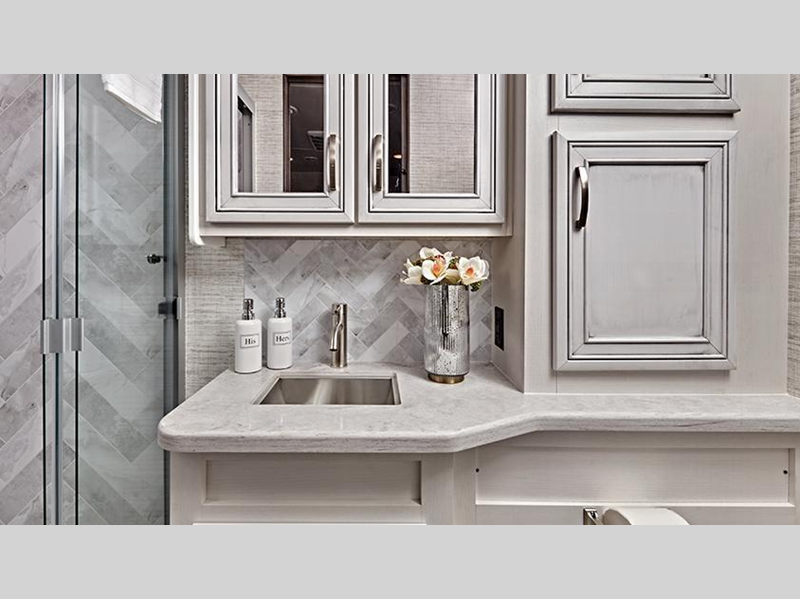

Bathroom

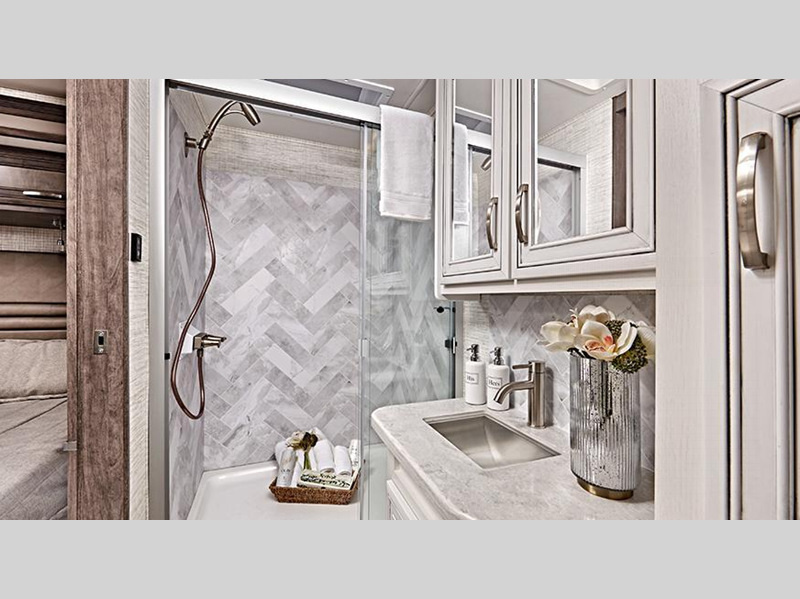

  • Shower with decorative surround, glass door, skylight and light
  • Recessed, LED-lit, stainless steel bathroom sink
  • Porcelain toilet with foot flush
  • Powered roof vent in bathroom with wall switch

Safety

  • 2-point lap safety belts in all designated seating locations
  • Smoke alarm
  • Carbon monoxide detector

Options

  • Customer Value Package (Mandatory) E-Z DRIVE ELITE, automatic hydraulic leveling jacks, frameless windows, 15K BTU and 13.5K BTU A/Cs, exterior entertainment center, electric patio awning, slide out awnings, 5,500W generator with auto-gen start, 2,000W inverter, 50 amp electrical service, 10 gal. gas/electric water heater, Pioneer infotainment center, backup and side-view cameras, removable cockpit table, LED-lit solid-surface countertops with stainless steel sink, LED HD Smart TV in living area, day/night roller shades
  • Drop-down overhead bunk in cab area with 750-lb. capacity
  • Power theater seating (36H, 36T)
  • 120 in. straight reclining sofa (36H)
  • Freestanding table with 4 chairs (36U)
  • 12 cu. ft. gas/electric refrigerator
  • Combination washer/dryer (36T,36U)
  • Stackable washer/dryer (36H)
  • Canadian standards

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
