Entegra Coach Vision Motor Home Class A RVs For Sale

Previous
Next
1 of 14

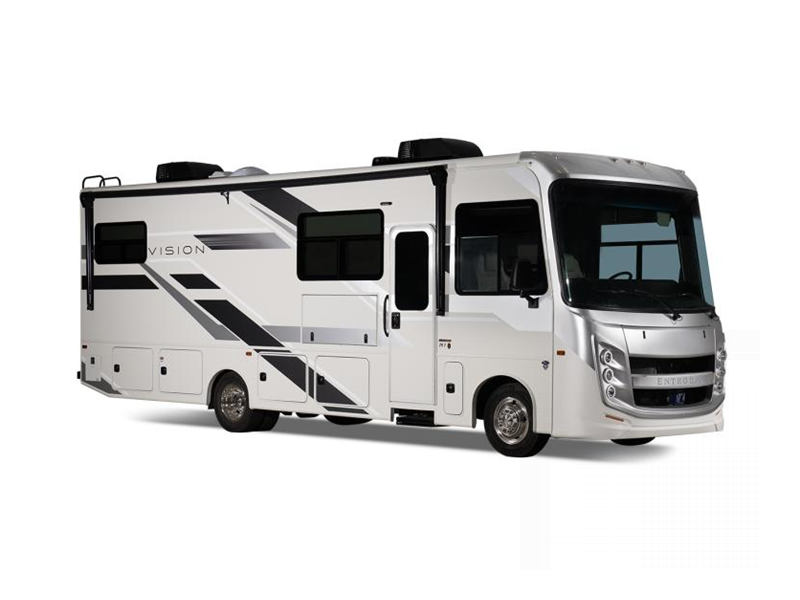

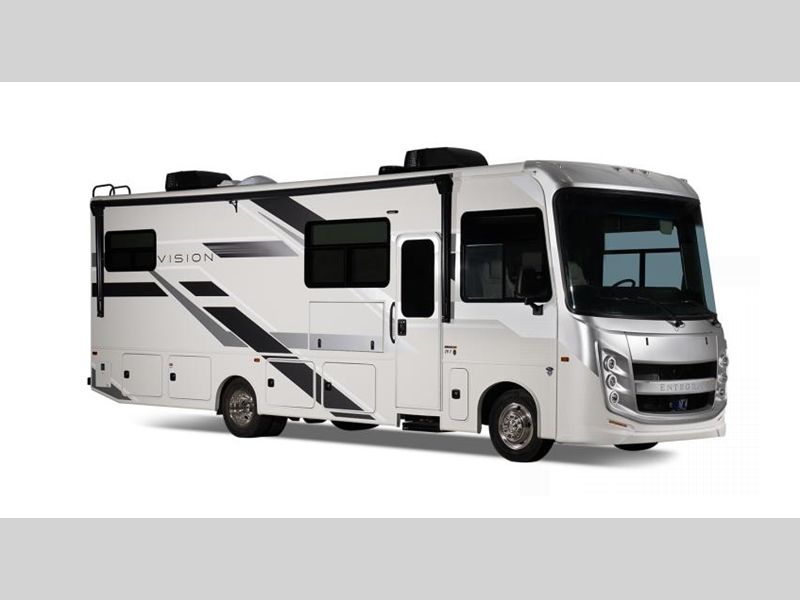

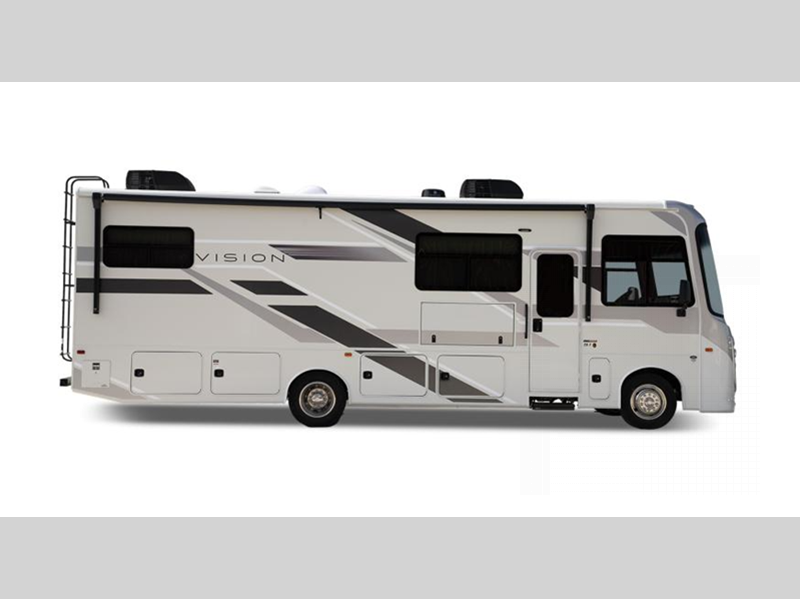

For a luxurious camping experience and a superior ride to the campsite, choose the Entegra Coach Vision Class A gas motorhome! You'll find that the Vision has been built upon a Ford F53 chassis with a 7.3L V-8 350HP engine, and the E-Z DRIVE ride and handling package gives you a smooth and enjoyable drive.



The cockpit offers you a Sony infotainment center with Apple CarPlay and Android Auto, backup and sideview cameras, a removable driver/passenger cockpit table, a 120" panoramic windshield, and a six-way power passenger seat. Throughout the rest of the interior, you'll find an 84" ceiling height for your tall passengers,  an LED HD Smart TV for great entertainment, and a Winegard 2.0 Wi-Fi/4G antenna for staying connected. The kitchen is another place that's decked out in accommodating and high-class amenities. It offers you a Furrion all-in-one cooktop and oven, residential-size microwave, and a pop-up charging station with 110V outlets and USB ports.



Don't overlook the Entegra Coach Vision Class A gas motorhome for luxury living while you travel!

  • Vision 27A

    Vision 27A Floorplan Image

    Take a Virtual Tour

    Entegra Coach Vision Class A gas motorhome 27A highlights: RV King Bed Sofa Two ... more about Vision 27A

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 29 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 7 ft
    Interior Color Brighton, Modern Farmhouse

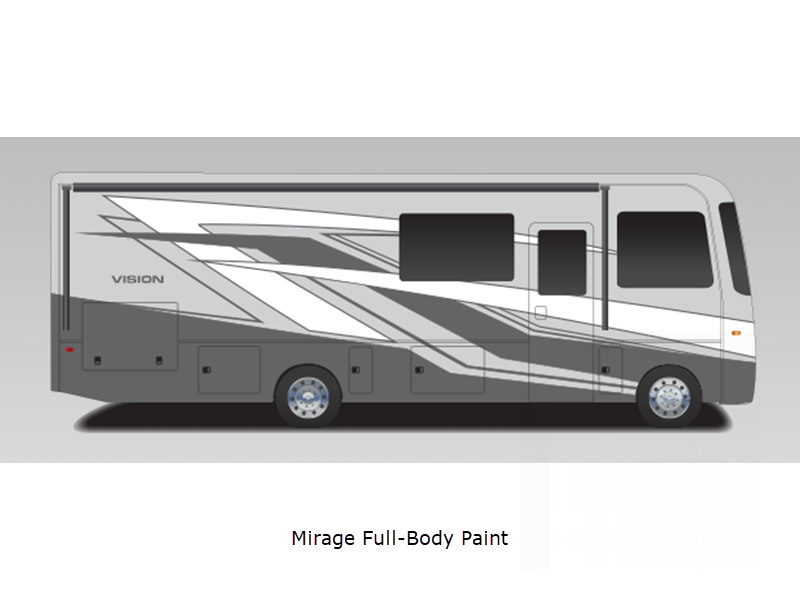

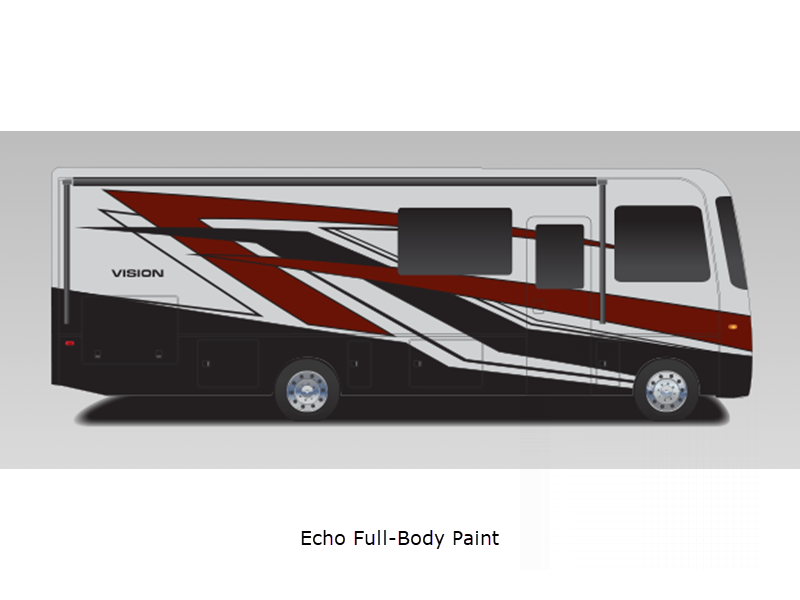

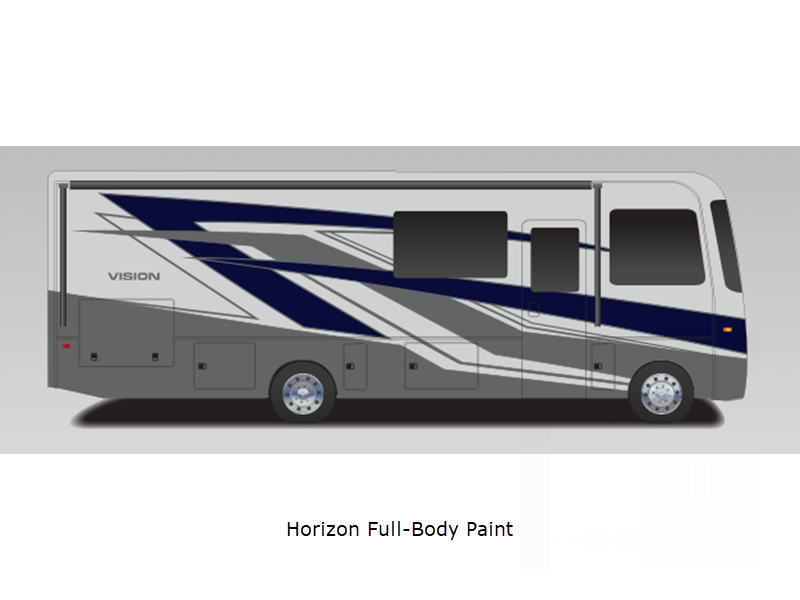

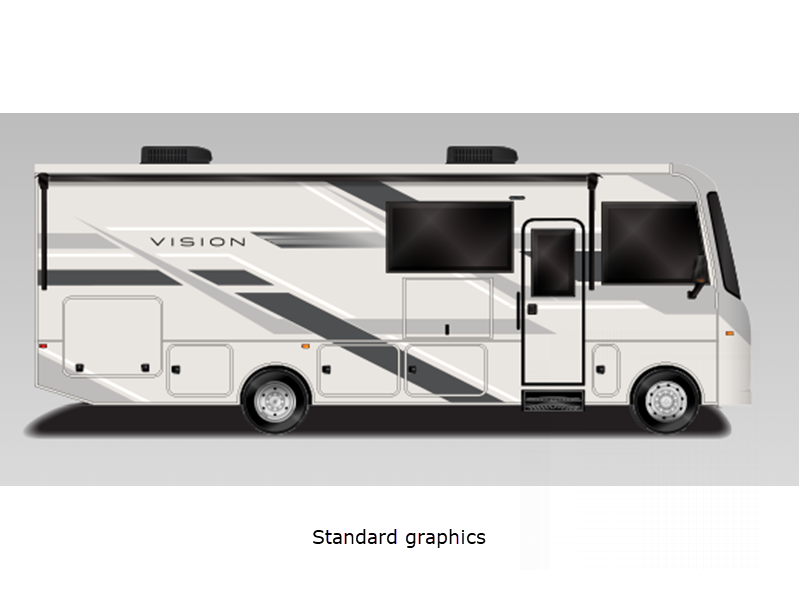

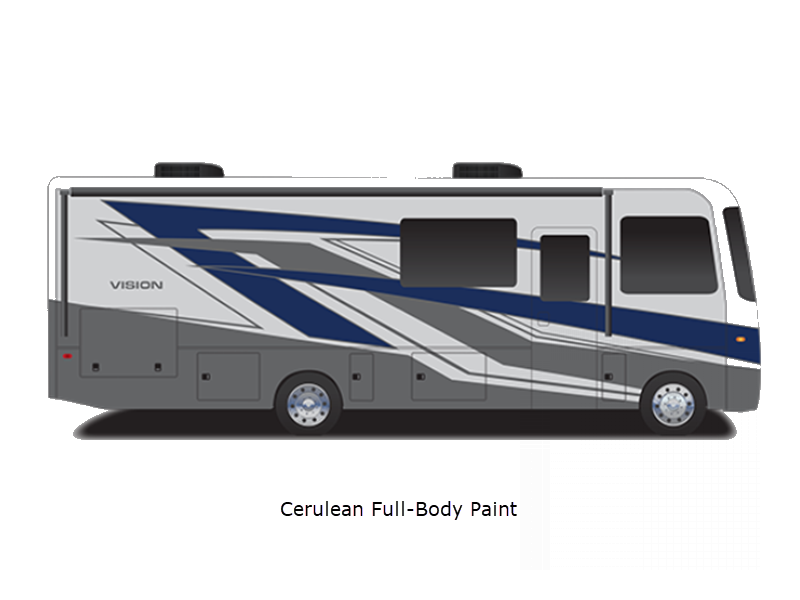

    Exterior Color Standard Graphics or Tannerite, Dolomite, or Basanite Full Body Paint
    Hitch Weight 5000 lbs
    GVWR 18000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 49 gals
    Tire Size 245/70R19.5
    Furnace BTU 30000 btu
    Generator 5,500W Onan Marquis Gold Genset
    Fuel Type Gasoline
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Available Beds RV King
    Torque 468 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 7000 lbs
    Axle Weight Rear 12000 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 28500 btu
    TV Info LR 39" LED HD Smart TV, Exterior LED HD Smart TV
    Awning Info 18' Electric with LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Vision 29F

    Vision 29F Floorplan Image

    Entegra Coach Vision Class A gas motorhome 29F highlights: Bunk Beds Full-Wall ... more about Vision 29F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 32 ft 2 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 7 ft
    Interior Color Brighton, Modern Farmhouse
    Exterior Color Standard Graphics or Tannerite, Dolomite, or Basanite Full Body Paint
    Hitch Weight 5000 lbs
    GVWR 18000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 49 gals
    Tire Size 245/70R19.5
    Furnace BTU 30000 btu
    Generator 5,500W Onan Marquis Gold Genset
    Fuel Type Gasoline
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Number Of Bunks 2
    Available Beds RV Queen
    Torque 468 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 32" x 32"
    Number of Awnings 1
    Axle Weight Front 7000 lbs
    Axle Weight Rear 12000 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 28500 btu
    TV Info LR 39" LED HD Smart TV, Exterior LED HD Smart TV
    Awning Info 23' Electric with LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Vision 29S

    Vision 29S Floorplan Image

    Take a Virtual Tour

    Entegra Coach Vision Class A gas motorhome 29S highlights: Full-Wall Slide RV ... more about Vision 29S

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 31 ft 4 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 5 in
    Int Height 7 ft
    Interior Color Brighton, Modern Farmhouse
    Exterior Color Standard Graphics or Tannerite, Dolomite, or Basanite Full Body Paint
    Hitch Weight 5000 lbs
    GVWR 18000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 50 gals
    Tire Size 245/70R19.5
    Furnace BTU 30000 btu
    Generator 5,500W Onan Marquis Gold Genset
    Fuel Type Gasoline
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Available Beds RV Queen
    Torque 468 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 7000 lbs
    Axle Weight Rear 12000 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 28500 btu
    TV Info LR 39" LED HD Smart TV, Exterior LED HD Smart TV
    Awning Info 23' Electric with LED Lights
    Gross Combined Weight 23000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Vision Features:

Standard Features (2023)



Chassis

  • E-Z DRIVE™: Computer-balanced driveshaft, jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks
  • Ford® F53 chassis
  • 7.3L V-8 350 HP engine with 468 ft.-lb. torque
  • 6-speed automatic TorqShift® transmission with overdrive and tow haul mode
  • 210-amp alternator
  • G-rated highway tires-245/70R19.5
  • Front and rear disc, 4-wheel anti-lock brakes
  • 5,000-lb. rear hitch receiver with dual connector and 7-pin plug
  • 12V chassis battery
  • 80-gal. fuel tank
  • Automatic hydraulic leveling jacks

Construction

  • One-piece, seamless, crowned fiberglass roof
  • Fiberglass exterior walls with vinyl graphics
  • TuffShell™ vacuum-bond laminated floor
  • One-piece, seamless, fiberglass front cap
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
  • TuffShell™ vacuum-bond laminated sidewalls

Heat, AC, Water & Power

  • 1,000-watt inverter
  • Onan Marquis Gold Genset 5,500-watt gas generator
  • Transfer switch with reverse polarity protection
  • 50-amp electrical service
  • (2) 6V AGM (220ah) house batteries on slide out tray
  • Heated holding tanks (12V pads)
  • 15,000-BTU A/C unit with heat pump and second 13,500-BTU A/C unit
  • Auto-ignition ducted furnace - 30,000 BTU
  • 6 gal. gas/electric DSI auto-ignition water heater
  • 16.5-gal. propane tank (56-lb.) with LP quick-connect hookup
  • Winterization drain system
  • Black tank flush
  • 12V demand water pump
  • Water filtration system

Exterior

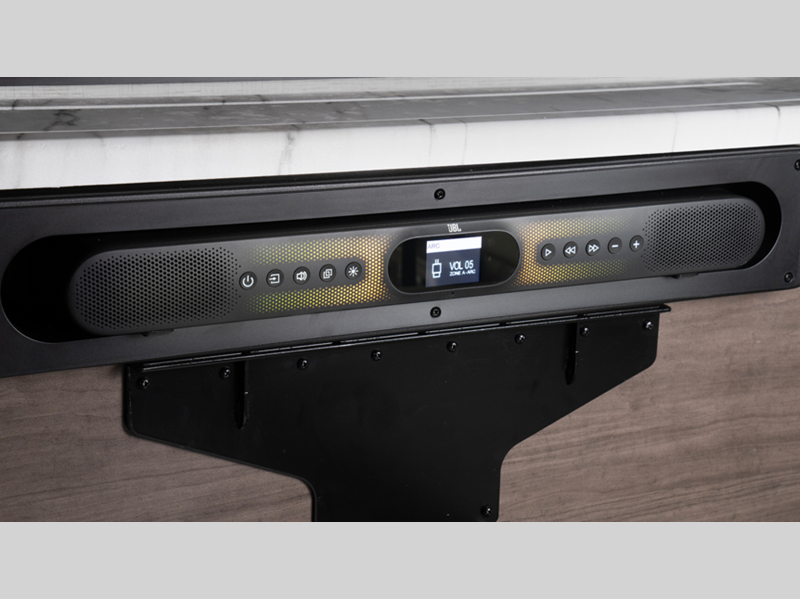

  • Exterior entertainment center with outside speakers, LED HD Smart TV mounted on swivel bracket and single-disc DVD/FM radio
  • Electric patio awning with LED lights
  • Slide out cover awnings

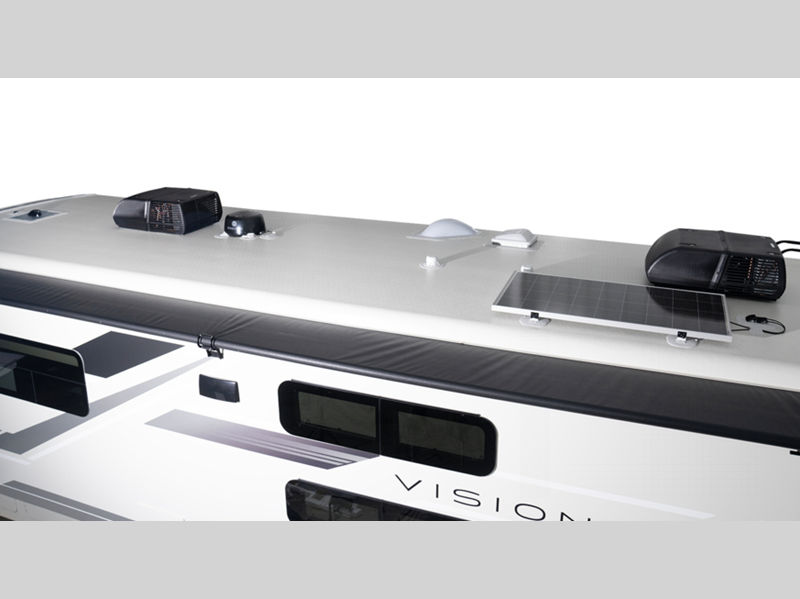

  • 190W solar panel with dual controller
  • Exterior utility center
  • Outside shower

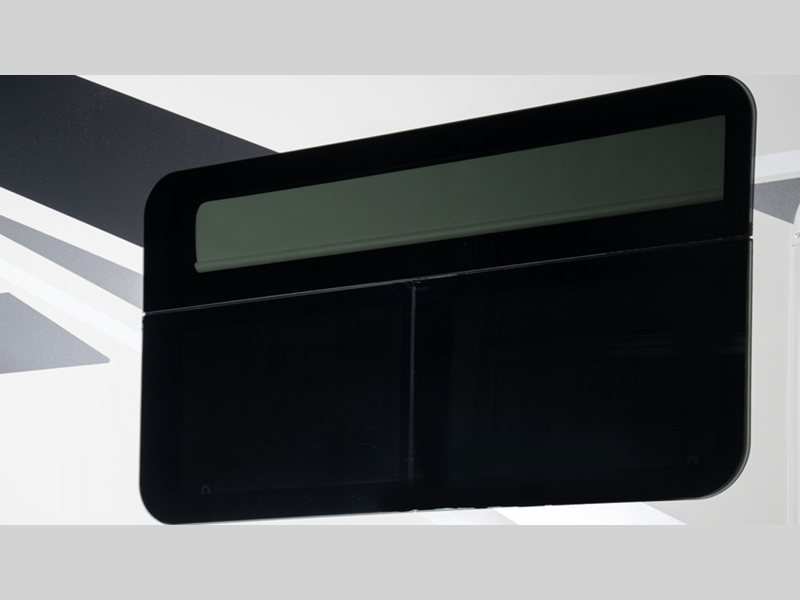

  • Frameless windows
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step
  • Lockable pass-through storage compartments with metal slam latches
  • 4-in. tube bumper with sewer hose storage

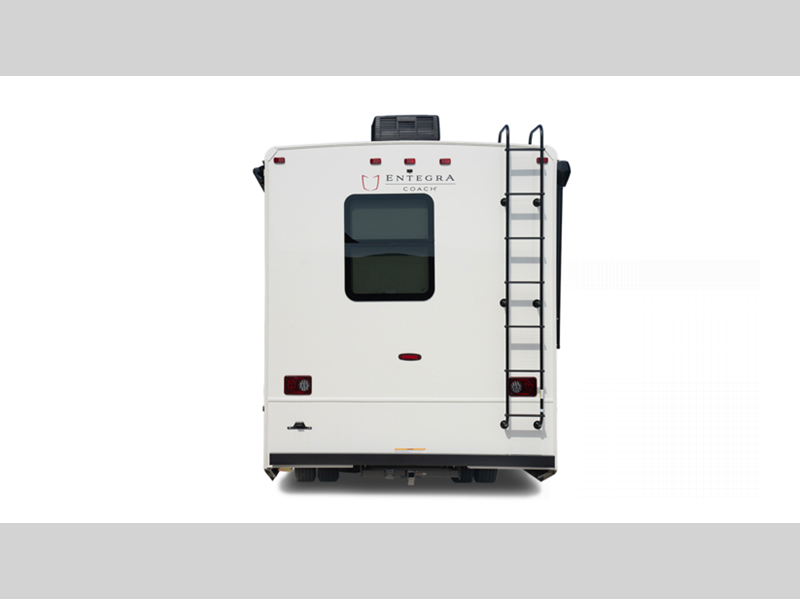

  • Roof ladder
  • Prep for satellite dish
  • Third brake light

Cockpit

  • Sony® infotainment center with Apple CarPlay® and Android Auto™
  • Backup and side-view cameras
  • Removable driver/passenger cockpit table
  • A/C and cruise control
  • Power front privacy shade with manual side privacy shades

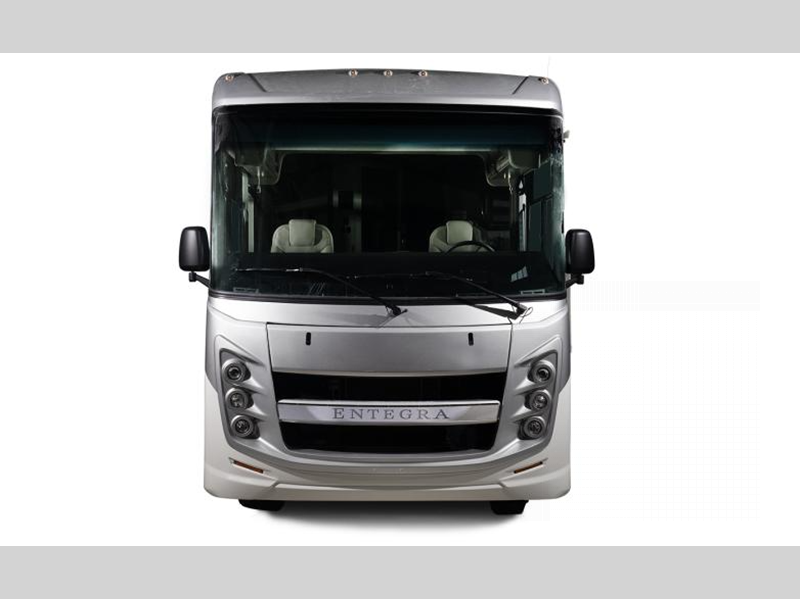

  • 120-in. panoramic windshield
  • 6-way power passenger seat
  • Soft-touch, vinyl-wrapped automotive dash
  • Tilt steering wheel
  • Auxiliary start

Interior

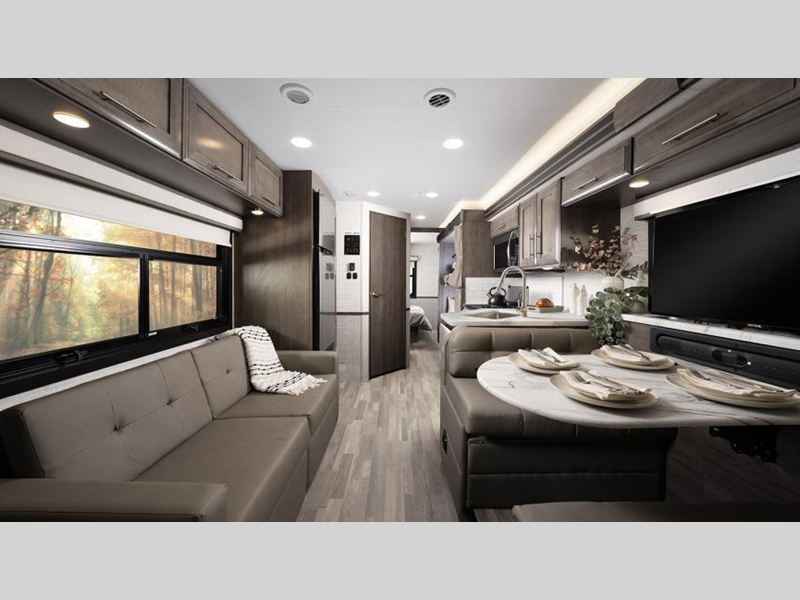

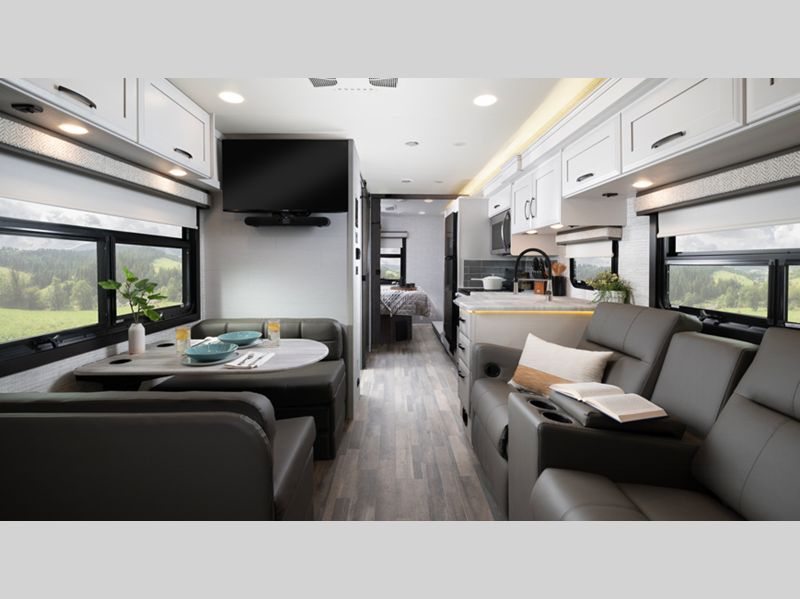

  • LED HD Smart TV in living area

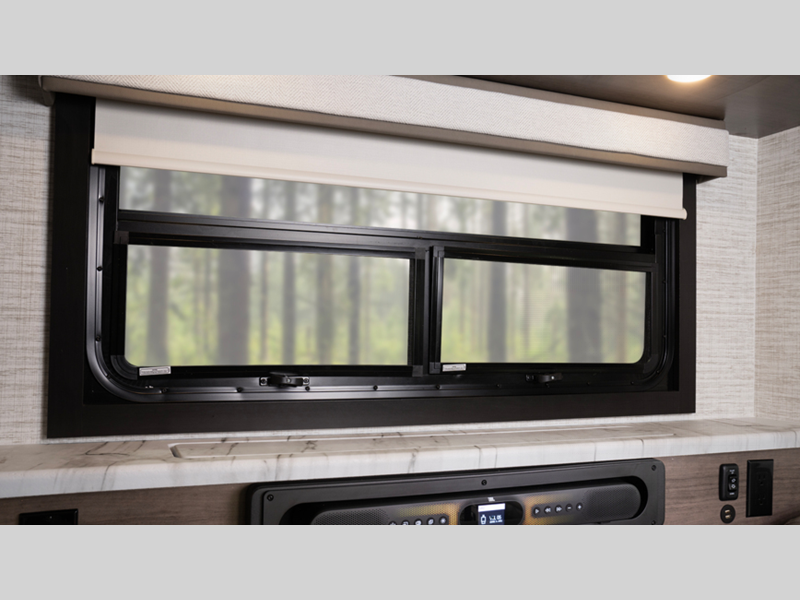

  • Blackout night roller shades
  • 84-in. interior ceiling height
  • High-intensity recessed LED ceiling lights
  • LED-lit hardwood fascia
  • Hardwood cabinet doors and drawers
  • Cable TV hookup with RG-6 coax
  • Winegard 2.0 Wi-Fi/4G antenna
  • Bunks with industry-exclusive 300-lb. capacity and wall-mounted tablet holder in each (29F)

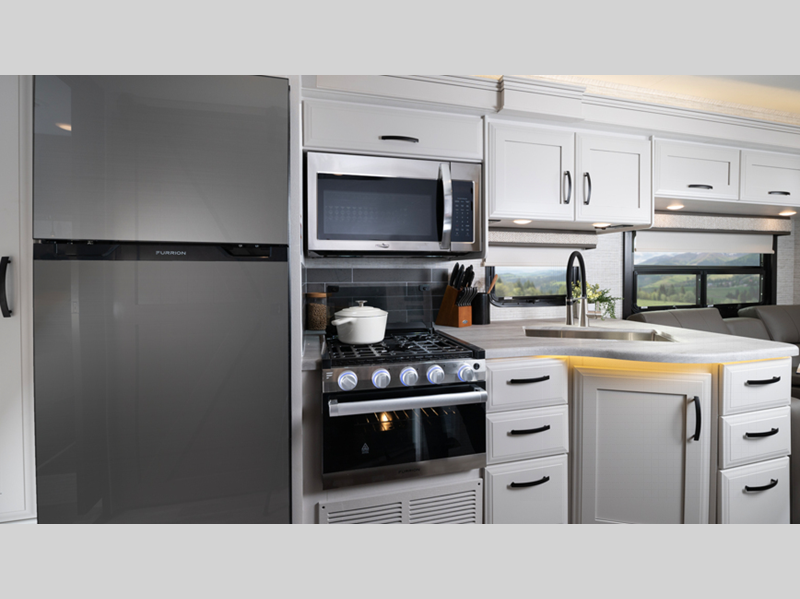

Kitchen

  • Ball-bearing drawer guides
  • Entegra-exclusive, easy-operation legless dinette table
  • 8-cu.ft gas/electric refrigerator
  • Furrion® all-in-one cooktop and oven
  • Residential-size microwave
  • Large, recessed, stainless steel kitchen sink with cover
  • LED-lit pressed countertops with flip-up extension (select models)
  • Decorative kitchen backsplash
  • Pop-up charging station in kitchen with 110 outlets and USB ports

Bedroom

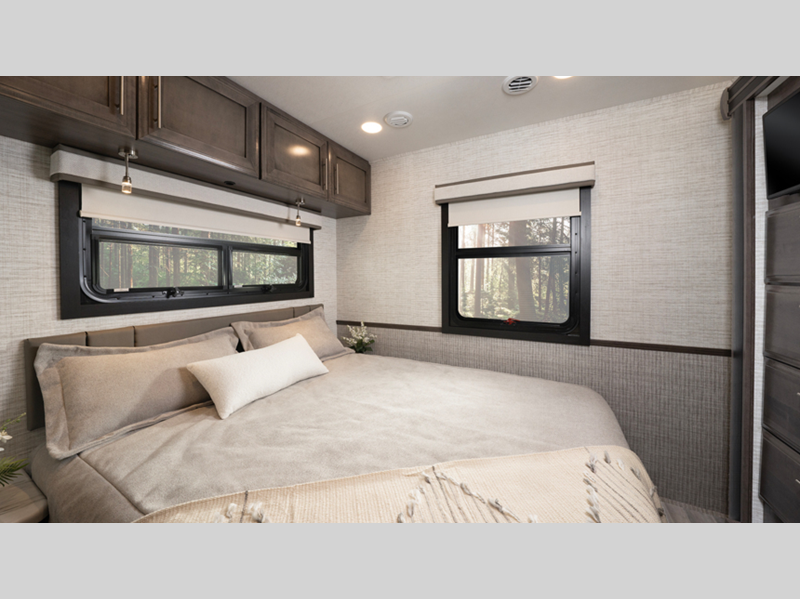

  • Walk-around, Queen-size bed with bedspread and nightstands (king size in 27A)
  • USB port and wireless charging in nightstand
  • Under-bed storage (select models)
  • Bedroom TV prep
  • Large wardrobes

Bathroom

  • Shower with decorative surround, glass door, skylight and light
  • Recessed stainless steel bathroom sink
  • Porcelain toilet with foot flush
  • Powered roof vent in bathroom with wall switch

Safety

  • 2-point lap safety belts in all designated seating locations
  • Smoke alarm
  • Carbon monoxide detector

Options

  • Customer Value Package (Mandatory)
    • E-Z DRIVE
    • One-piece seamless crowned fiberglass roof
    • Exterior entertainment center
    • Electric patio awning with LED lights
    • Slide out awnings
    • 1,000K inverter
    • Sony infotainment center
    • Backup ad side-view cameras
    • Removable driver/passenger cockpit table
    • LED HD Smart TV in living room
    • Blackout night roller shades

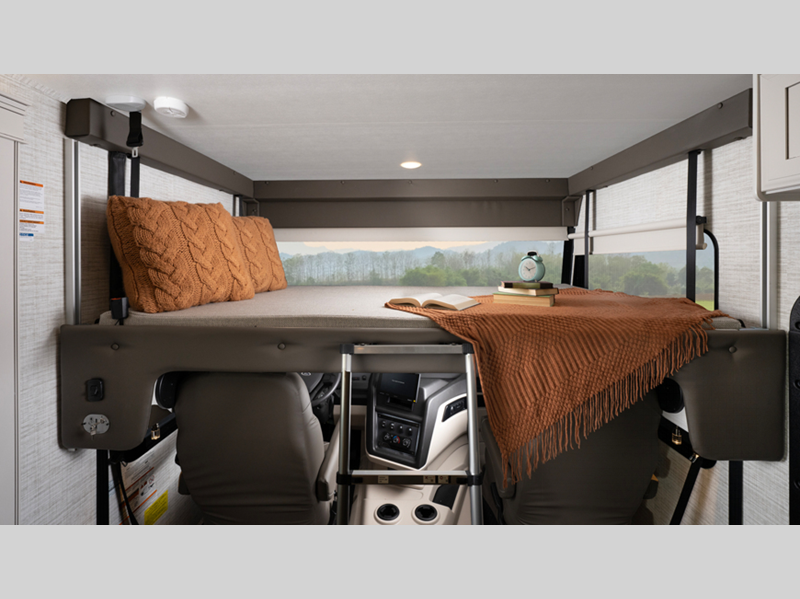

  • Drop-down overhead bunk in cab area with 750-lb. capacity

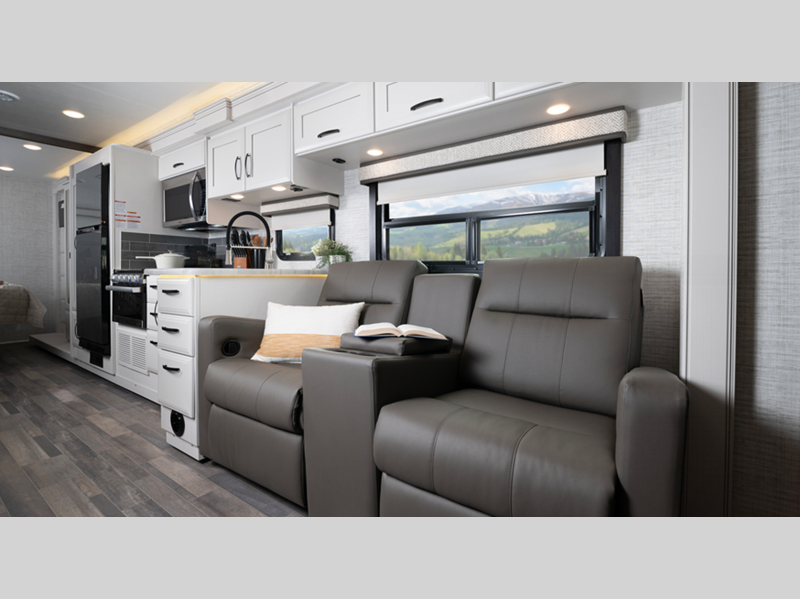

  • Theater seating
  • 12 cu. ft. gas/electric refrigerator
  • Theater seating (29S only)
  • LED HD Smart TV in bedroom

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
