Winnebago Revel Motor Home Class B - Diesel RVs For Sale

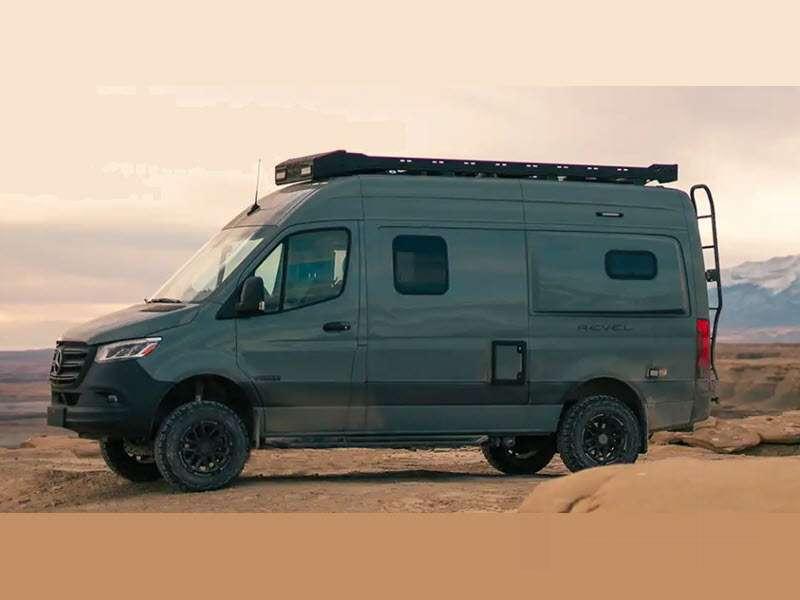

The Revel Class B diesel motorhome by Winnebago is bringing you better off-road performance, along with the ability to stay longer and enjoy more comforts off-grid! This off-road capable adventure van is ready when you are with an AWD turbo-diesel engine, innovative off-grid power capabilities, and upgrades that allow you to easily camp in all sorts of locations.

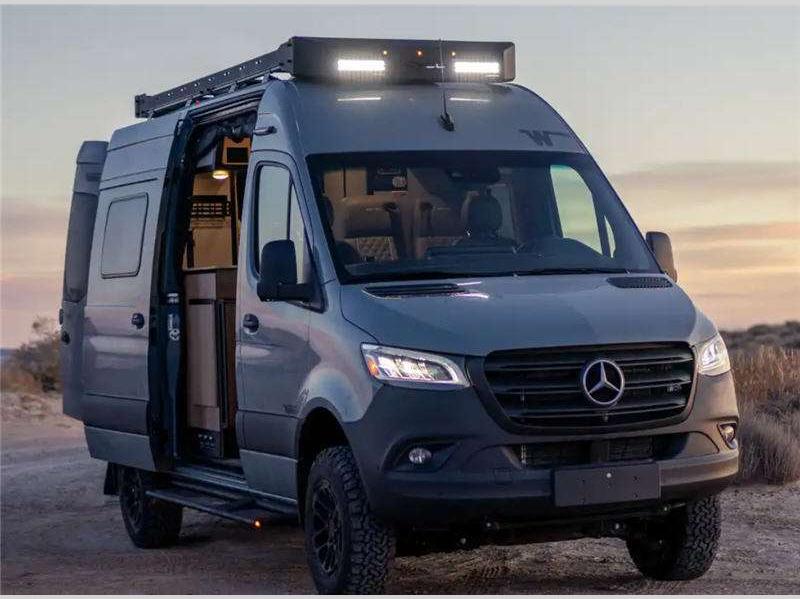

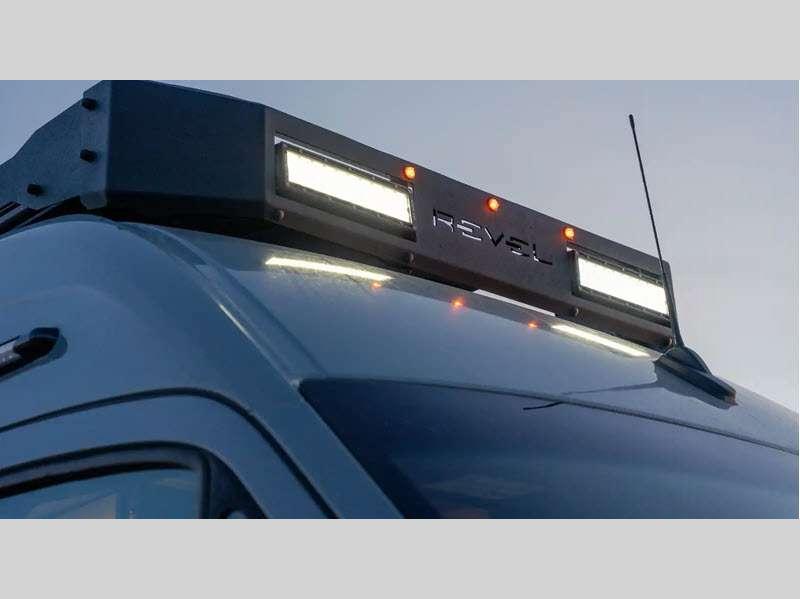

Explore off the beaten path with exterior accessories like the tubular-style running boards and front fairing where you will find dual off-road 10" light bars that have 22,000 lumens of light so you can see your surroundings easily. Your off-grid adventures can last a little longer with the Winnebago Power Max system, and molded water tanks which at 75% larger gives you 35 gallons of water and up to 7 days off-grid power!
Get out and stay outdoors with comforts inside in a Revel Class B diesel motorhome by Winnebago!
-
Revel 44E
Winnebago Revel Class B diesel motorhome 44E highlights: All-Wheel Drive Power ... more about Revel 44E
Have a question about this floorplan? Contact Us
Specifications

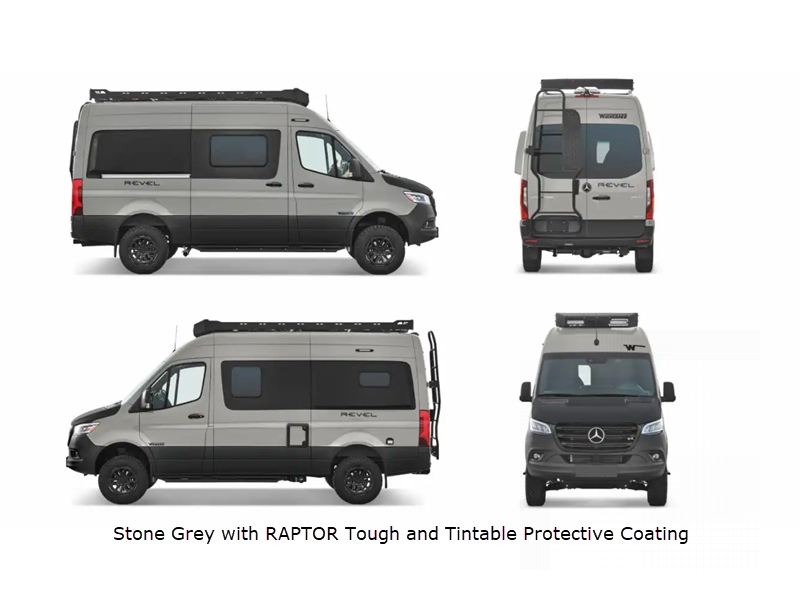

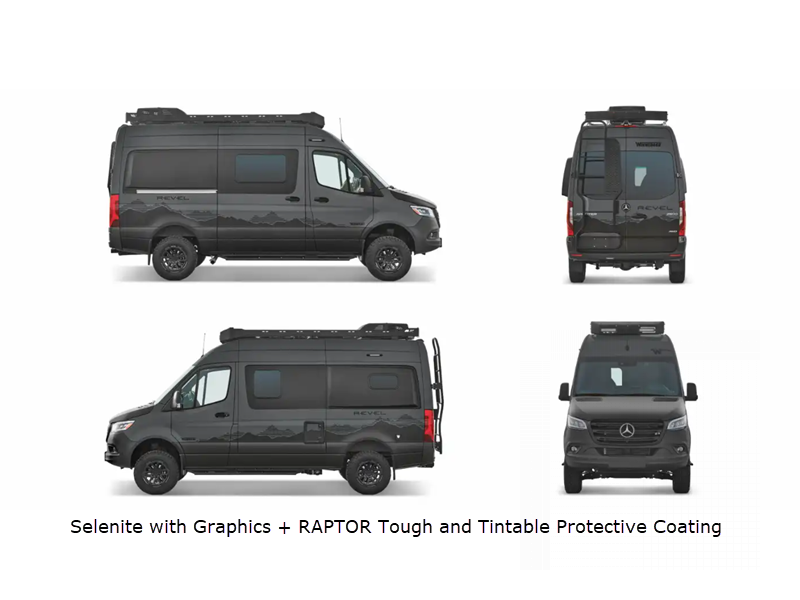

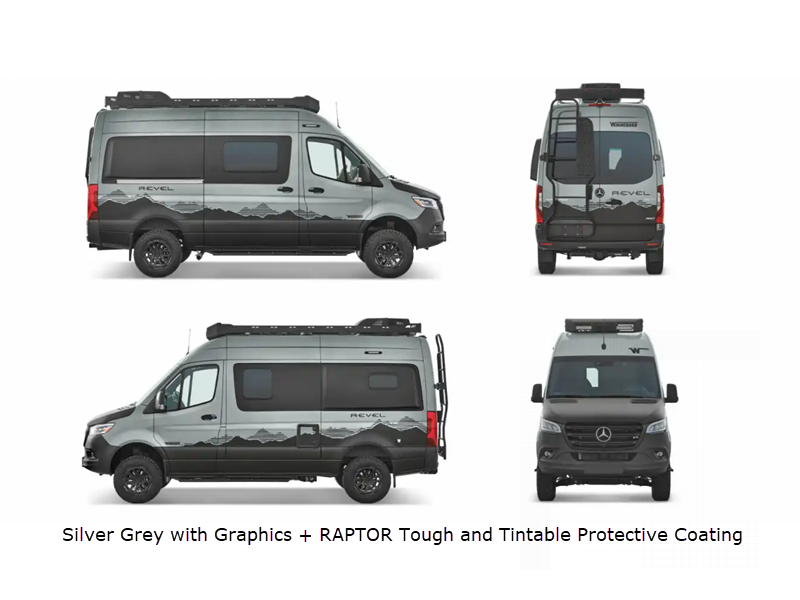

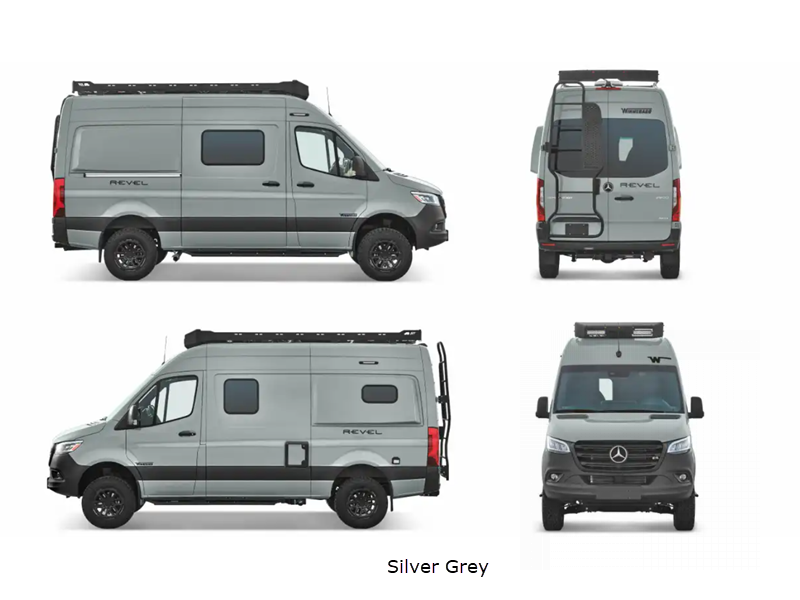

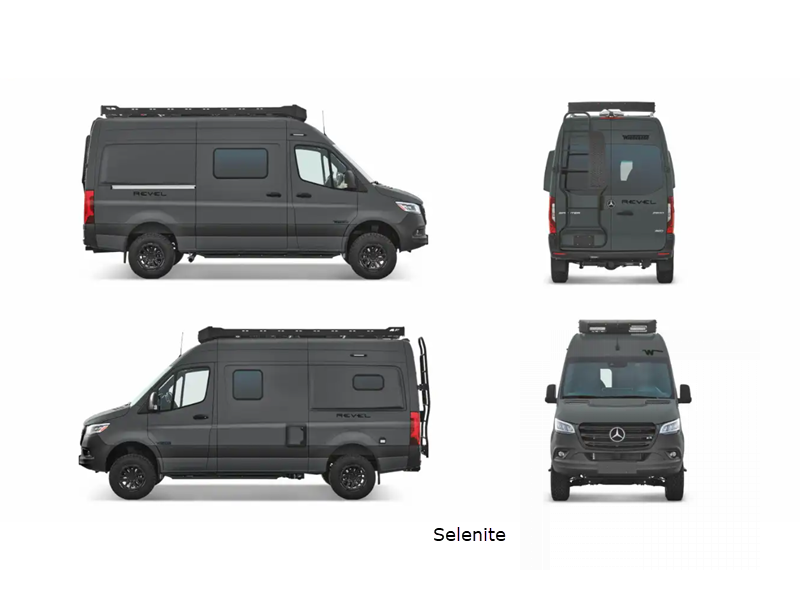

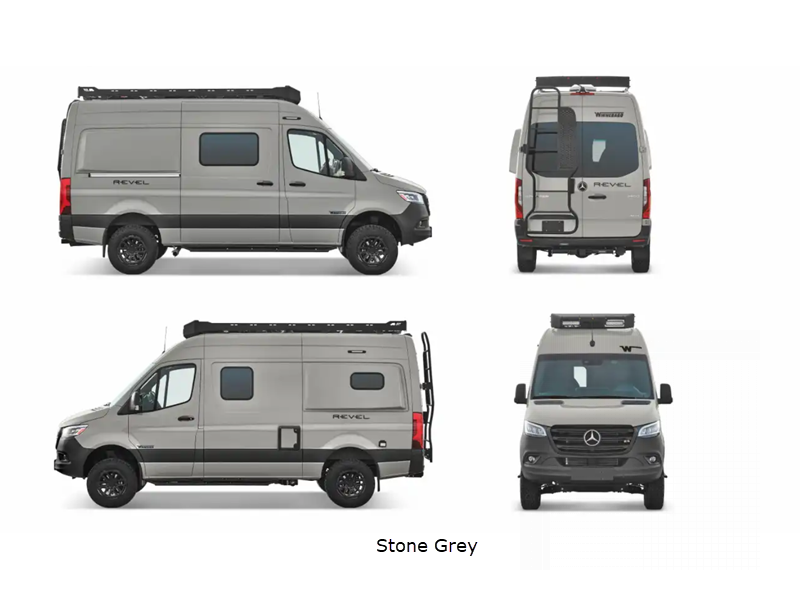

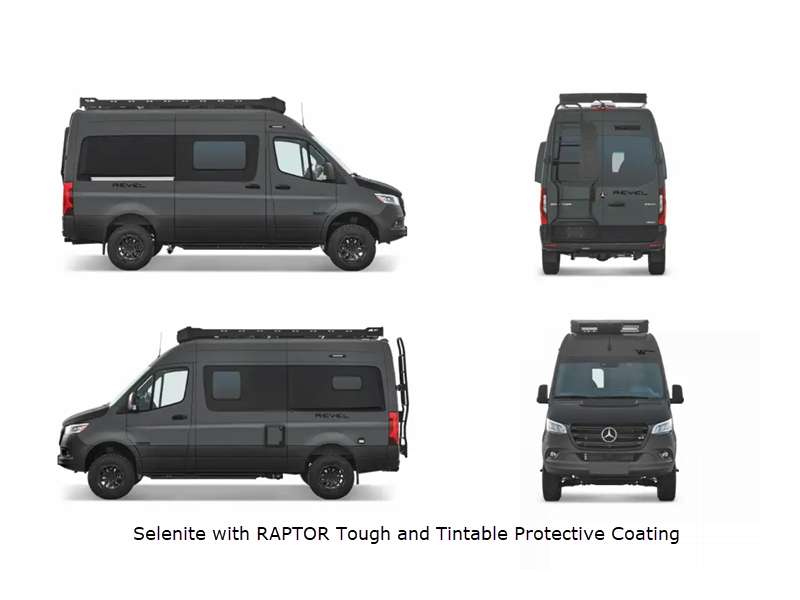

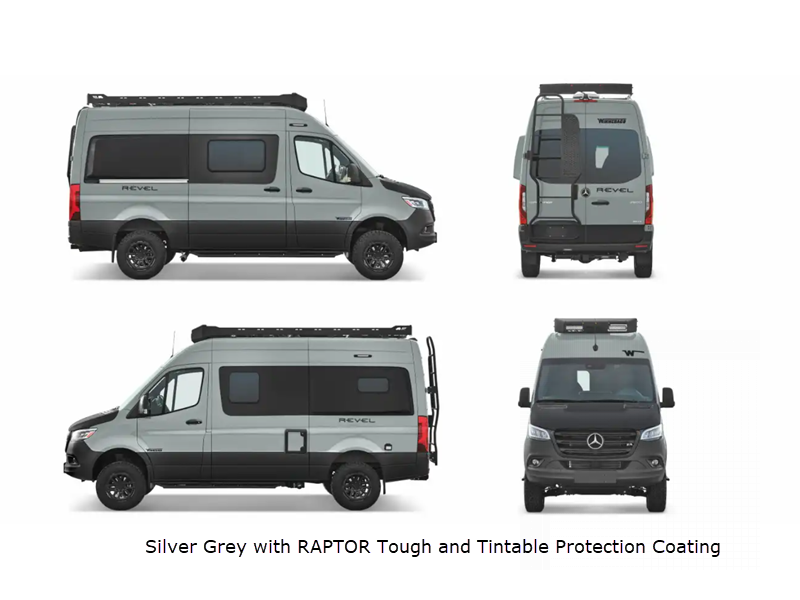

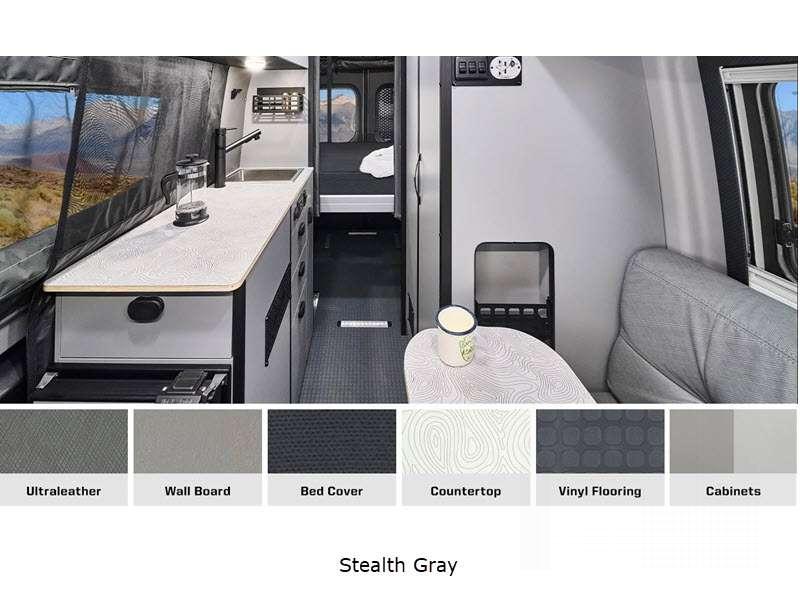

Sleeps 2 Length 19 ft 7 in Ext Width 7 ft 5 in Ext Height 10 ft Int Height 6 ft 3 in Interior Color Overlander, Solstice, Stealth Gray Exterior Color Silver Grey, Stone Grey, Selenite w/RAPTOR/RAPTOR+ Tough & Tintable Protective Coating Hitch Weight 5000 lbs GVWR 9050 lbs Fresh Water Capacity 35 gals Grey Water Capacity 21 gals Fuel Type Diesel Engine 2.0L 4-Cylinder Turbo Chassis Mercedes Benz Sprinter AWD Horsepower 211 hp Fuel Capacity 24.5 gals Wheelbase 144 in Refrigerator Type Compressor Driven Refrigerator/Freezer Refrigerator Size 3.0 cu ft Cooktop Burners 1 Shower Size 31" x 26" Axle Weight Front 4409 lbs Axle Weight Rear 5359 lbs Water Heater Type Continuous Gross Combined Weight 13930 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp
Take a Virtual TourRevel Features:
Standard Features (2026)
Chassis
- Mercedes-Benz® AWD Sprinter Chassis 2.0L high-output, turbo-diesel 4-cylinder, 9-speed automatic transmission with overdrive
- 4-wheel ABS brakes
- LED high performance headlamps
- Trailer hitch 5,000-lb. drawbar/500-lb. Maximum vertical tongue weight
- 7-pin trailer wiring harness connector
- Spare tire
Optional Equipment

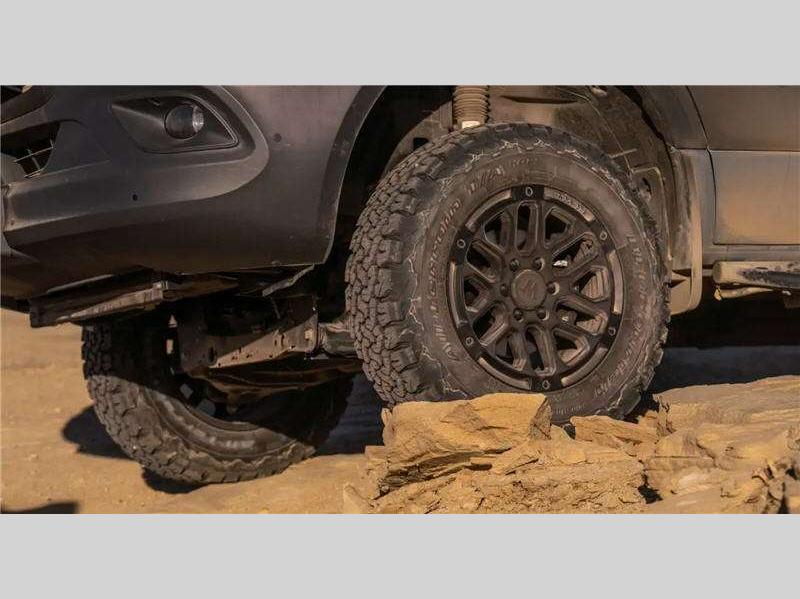

- Customized performance wheels and BF Goodrich® T/A® KO2 all-terrain tires

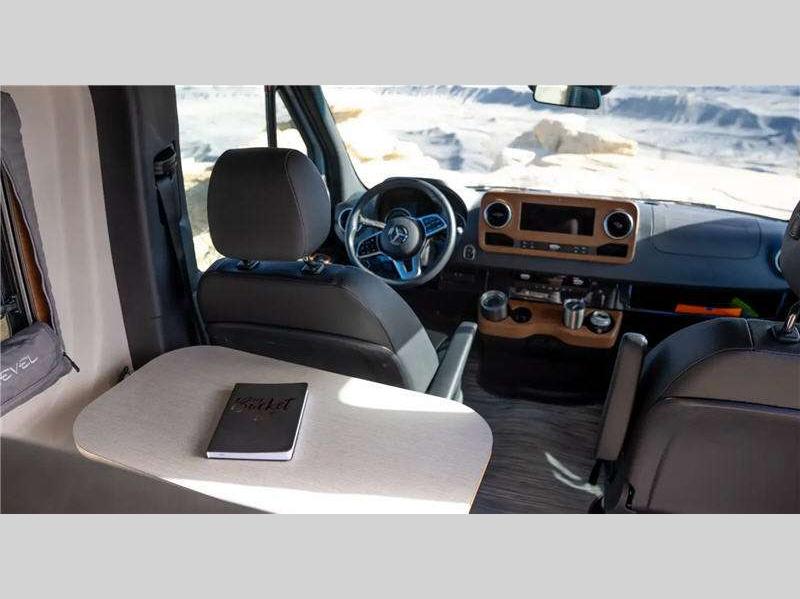

Cab Conveniences
- Heated steering wheel
- MBUX® touchscreen multimedia infotainment system w/navigation, Wi-Fi hotspot, intelligent voice control, and rear camera
- Mercedes me connect vehicle app
- Heated cab seats w/single in-board armrest, adjustable lumbar support, adjustable headrest and slide, swivel and recline
- Airbags driver and passenger
- 3-point seat belts
- DISTRONIC PLUS® (adaptive cruise control)
- Power assist steering w/tilt and telescoping wheel
- Power mirrors w/defrost and turn signals
- Power door lock w/remote control
- Power windows
- 12-volt powerpoints
- Sunvisors
- Applique package
- Rain sensor w/integrated wet wiper system
- Auto headlamps w/high beam assist
- Active braking assist
- Active lane keeping assist
- Blind spot assist
- Attention assist (driver alert)
- Traffic sign assist
- Dash charging station (wireless, 12V and USB charge points)
- Digital rearview mirror

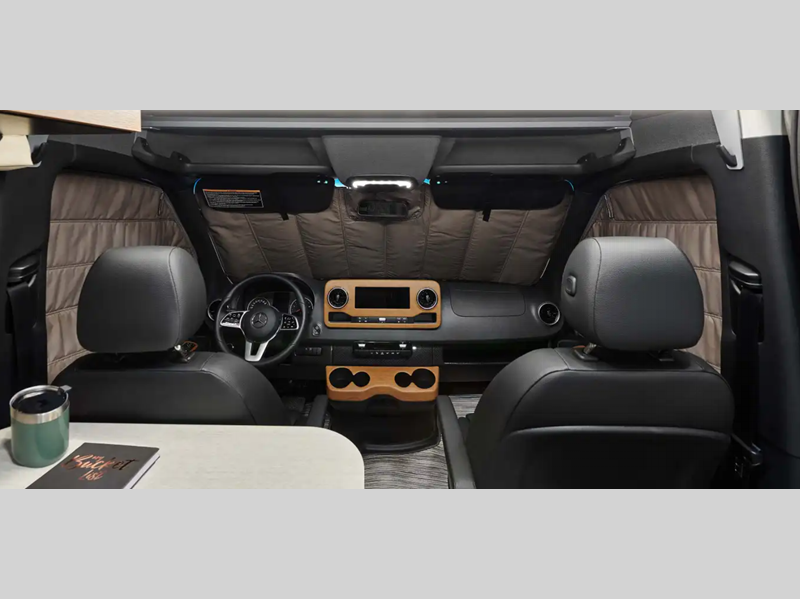

- Folding privacy shades for front and cab door windows
Electrical
- AC/DC load center/converter
- Coach battery disconnect system
- Automatic dual-battery charge control
- 30-amp. SmartPlug® power cord
- Winnebago Power MAX (8.4kWh Lithionics® lithium-ion battery w/dual alternator charging capability, Bluetooth® control and pack heating system, EcoFlow® Power Hub Pro (5-in-1 power management controller [3,600-watt inverter, inverter charger, DC-DC converter, MPPT solar charger and alternator charger], touchscreen interface, and 210-watts of solar)
Optional Equipment
- (1) additional 8.4kWh Lithionics® lithium-ion battery

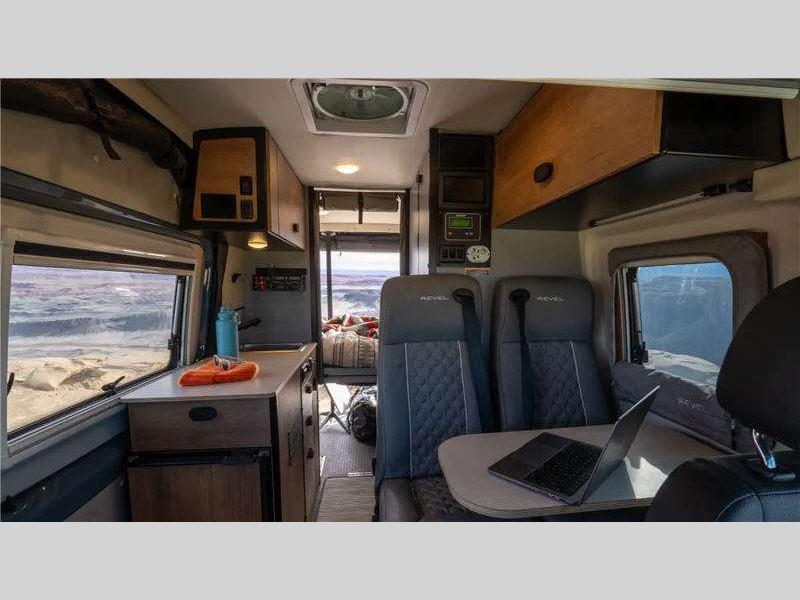

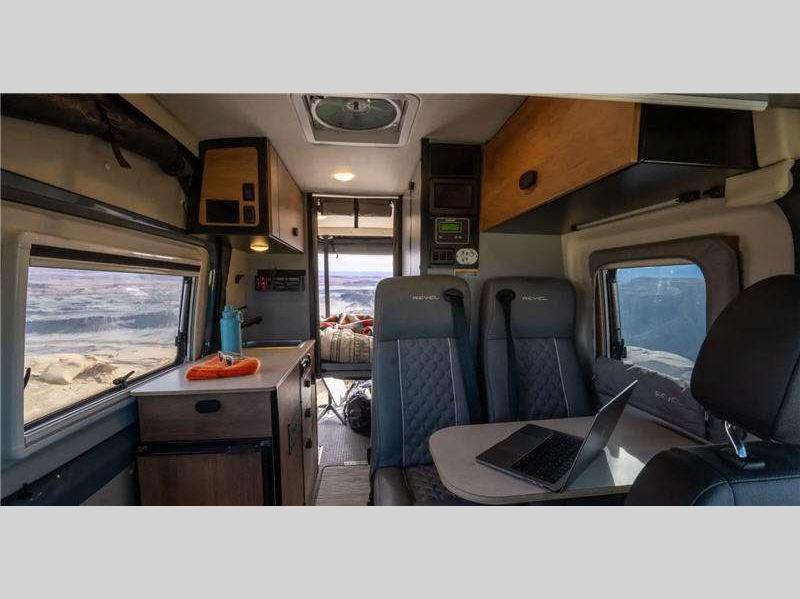

Interior
- LED ceiling lights
- Tinted dual-pane euro acrylic windows w/cassette shades
- Front overhead cabinet shelf (cab area)
- Systems monitor panel
- Deluxe powered ventilator fan w/rain cover
- RAM® Tough-Track™ mounts throughout
- Entry door assist handle w/Ram Tough-Track mount
- Roof wiring access port
- Heavy duty vinyl flooring throughout
- Below floor storage (lounge)

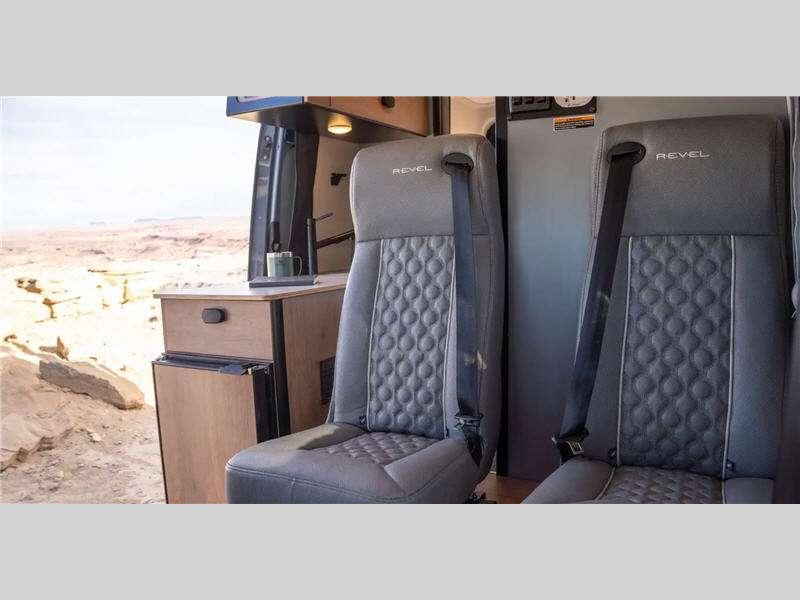

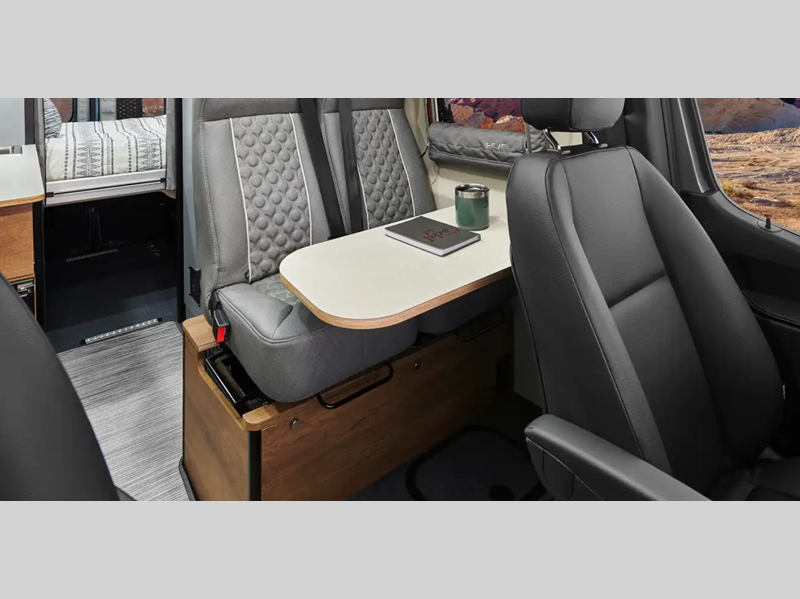

- Forward facing lounge seat w/two integrated 3-point seat belts w/forward, recline and slide adjustments
- Adjustable, removable table w/storage behind lounge seat
- 120V, 12V, USB-A, and USB-C charging ports
Optional Equipment
- 30" x 65" front cab air mattress w/support base, cordless pump, repair kit and storage bag
Galley
- High pressure laminate countertop

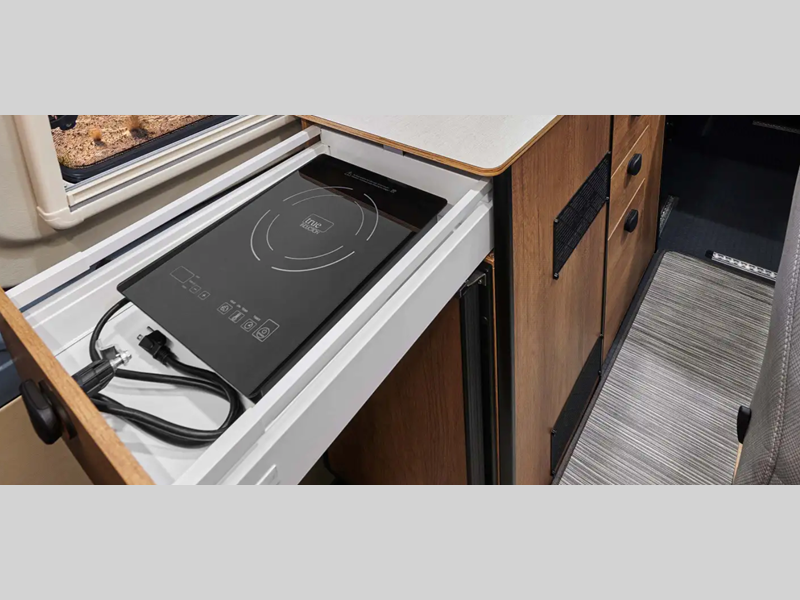

- Portable single burner induction range top
- 3.0 cu. ft. (12V) compressor driven refrigerator/freezer
- Spice rack
- Galley drawer w/counter extension cover (induction cooktop storage)
- Stainless steel sink w/single control faucet and pull-out sprayer

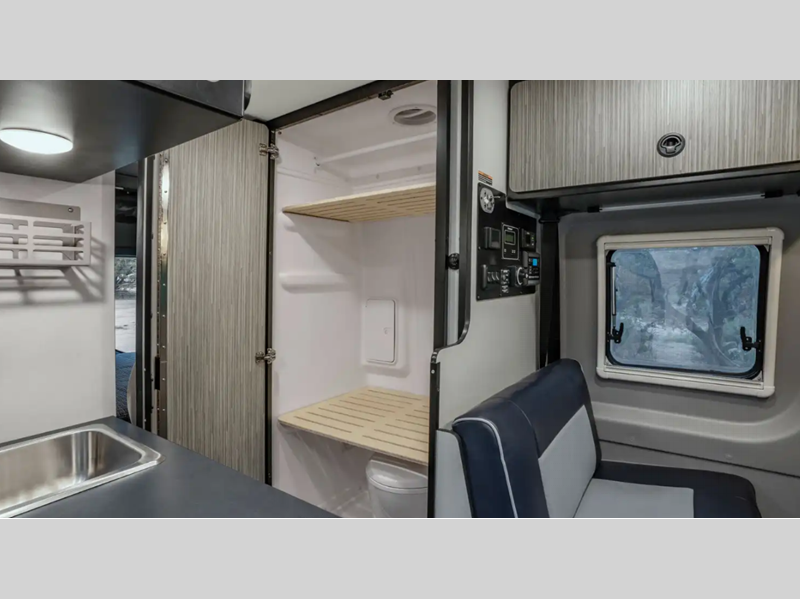

Bath
- 31" x 26" Wet bath
- Shower w/wall surround
- (1) removable shelf
- Dual control faucet w/flexible shower head
- Removable clothes rod
- Powered roof vent
- Robe hooks
- Shower curtain
- Tissue holder

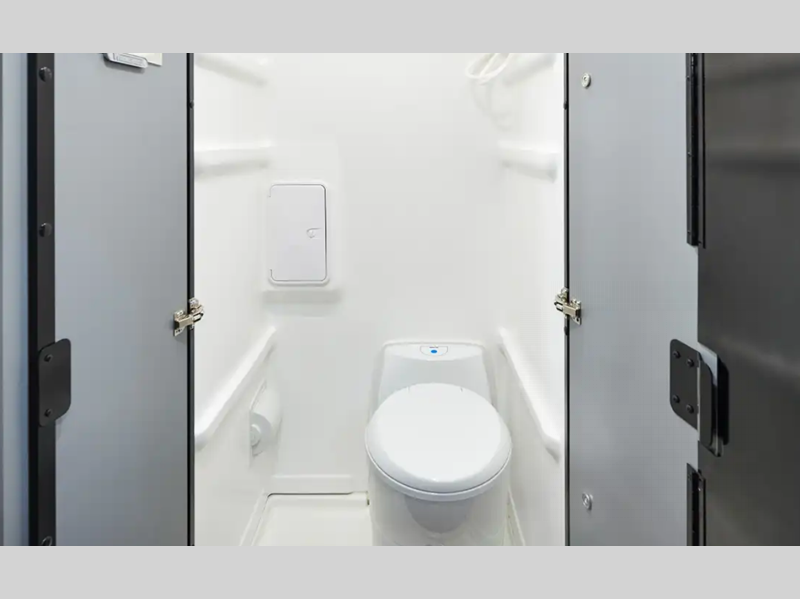

- Swiveling cassette toilet
- Split bath door w/privacy panel extension
- (2) collapsible storage containers
- Mirror
Bedroom
- Powered roof vent w/rain cover (N/A w/air conditioner)
- Reading lights
- Power lift bed w/WinnSleep® technology and molded pockets w/zip storage below

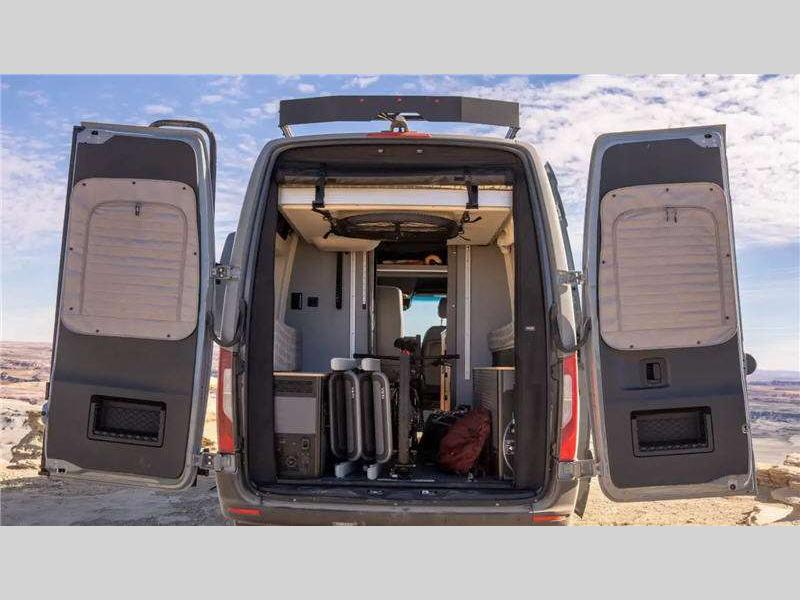

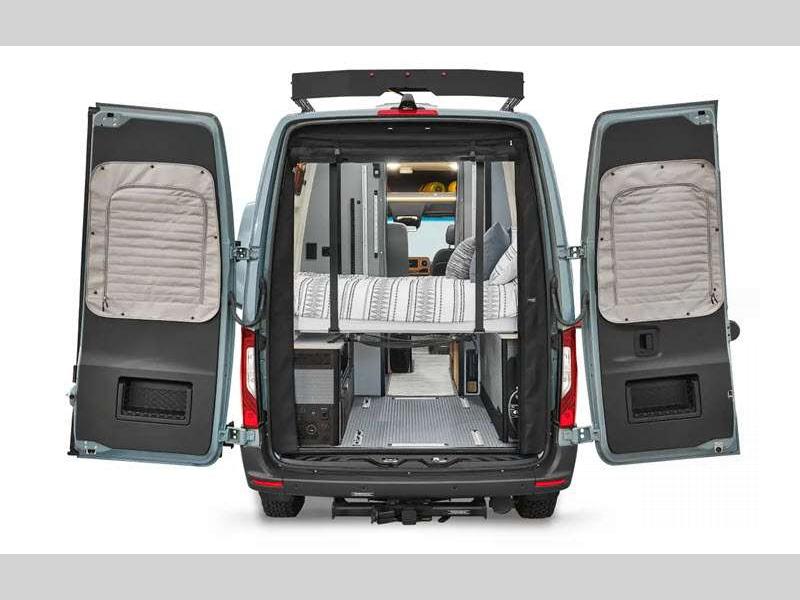

- Under-bed gear garage storage w/strategically placed L-track tie downs
- (2) pocket storage nets

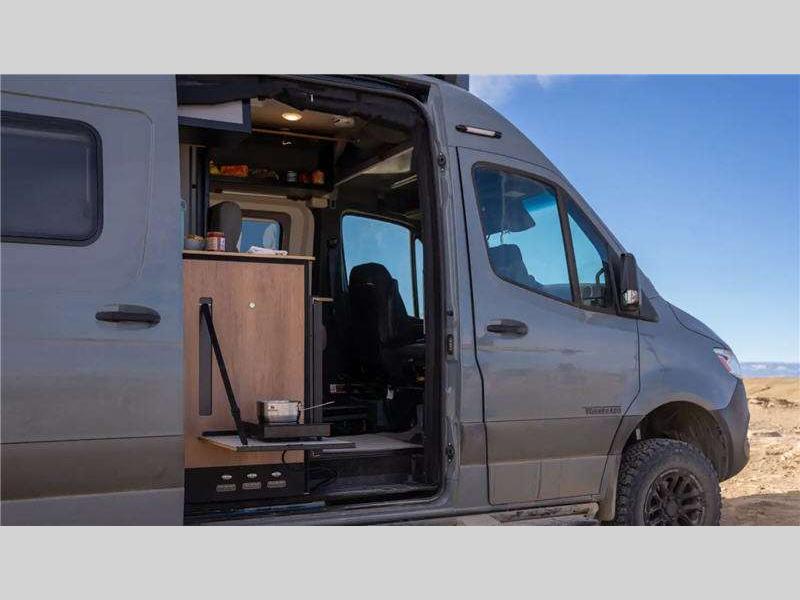

Exterior
- Side screen door w/magnetic closure

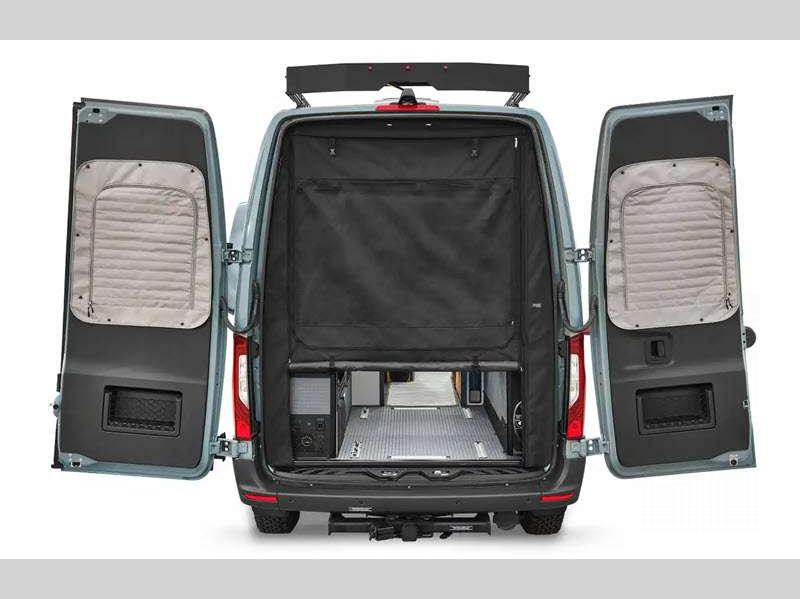

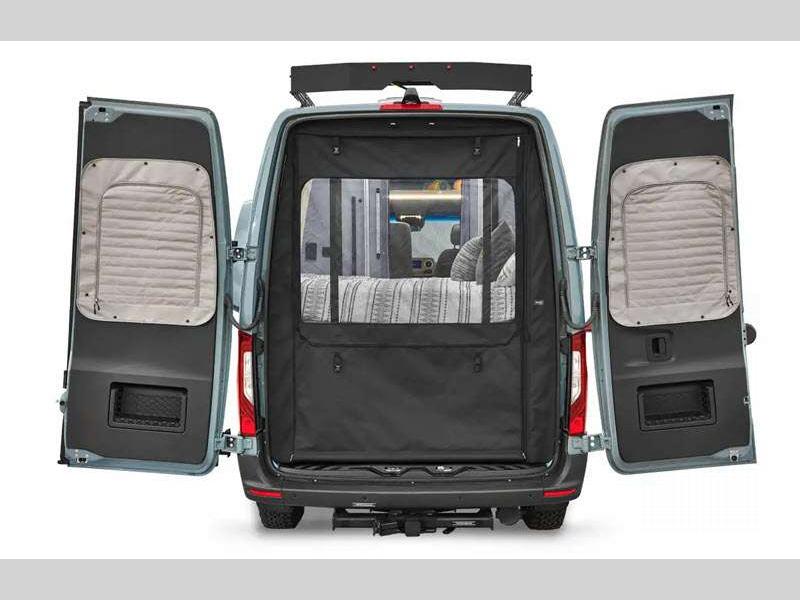

- Rear screen door w/blackout panel
- Porch light w/interior switch
- Driver side service light w/interior switch
- Fold-down exterior table
- Rear mud guards

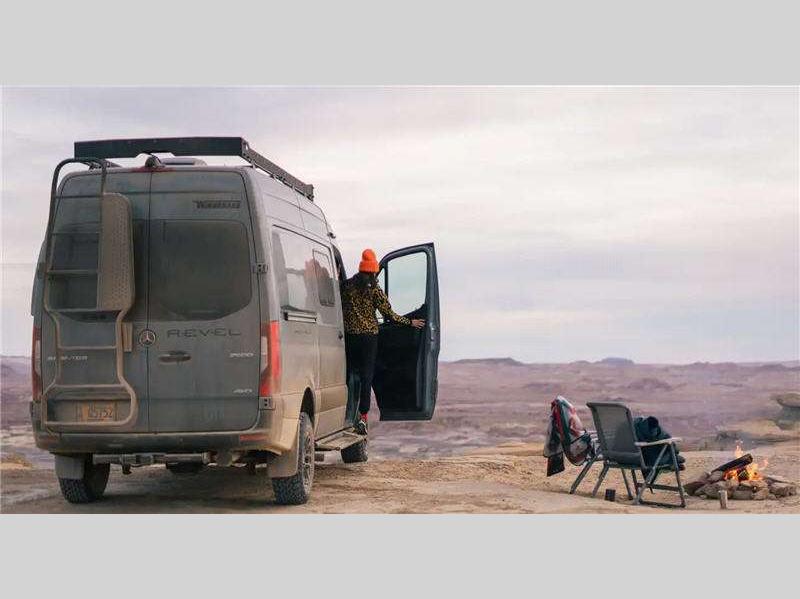

- Rear mounted ladder
- Luggage rack w/custom side rails and front faring off-road lighting
- Tubular aluminum running boards w/ground effect lighting, clearance lighting, and integrated pet leash attachment
Optional Equipment
- Rack mounted powered patio awning w/Bluetooth® control
Heating & Cooling System

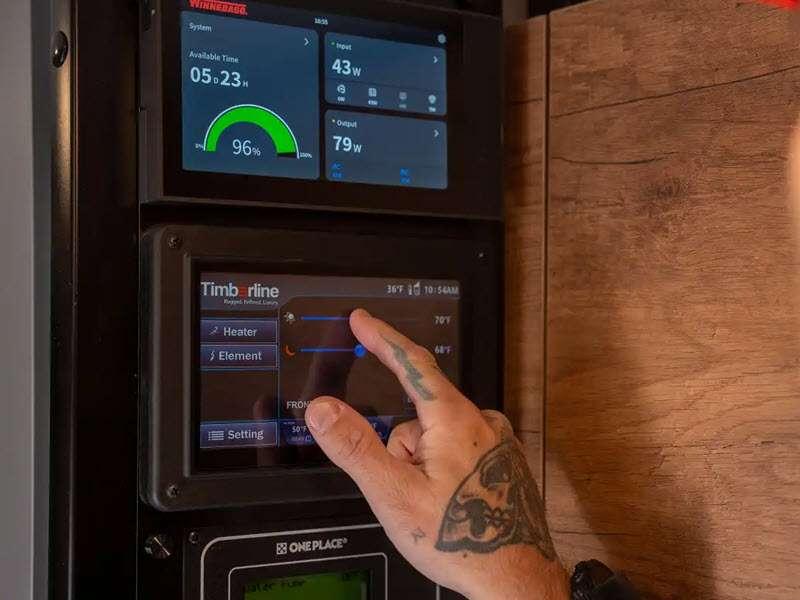

- Hydronic heating system w/multi-zone heating and LED touchscreen panel
Optional Equipment
- 13,500 BTU air conditioner
Plumbing System
- Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door)
- 10' sewer hose
- On-demand water pump
- Heated gray water holding tank (below floor)
- Heated freshwater holding tank
- Galley drain pump
- Winterization package w/labeled valves, courtesy lights and siphon tube
Safety
- LP, Smoke, and carbon monoxide detectors
- Fire extinguisher
- Ground fault interrupter
Optional Package Upgrades

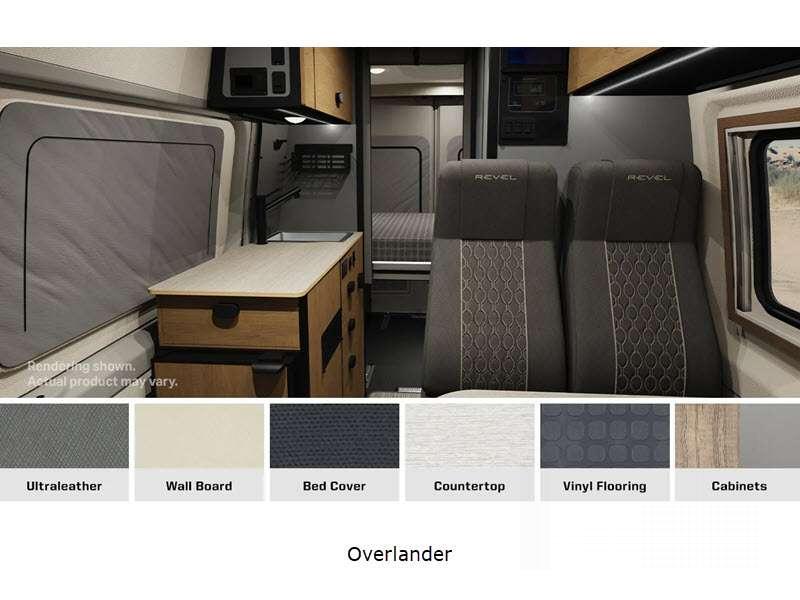

- Interior Package Upgrade includes Overlander interior decor, removable Chilewich® floor mats (cab and coach) and insulated window coverings
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
