Floorplan - 2017 Keystone RV Montana High Country 352RL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- List: $42,995
-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
37ft Long
-
10,805 lbs

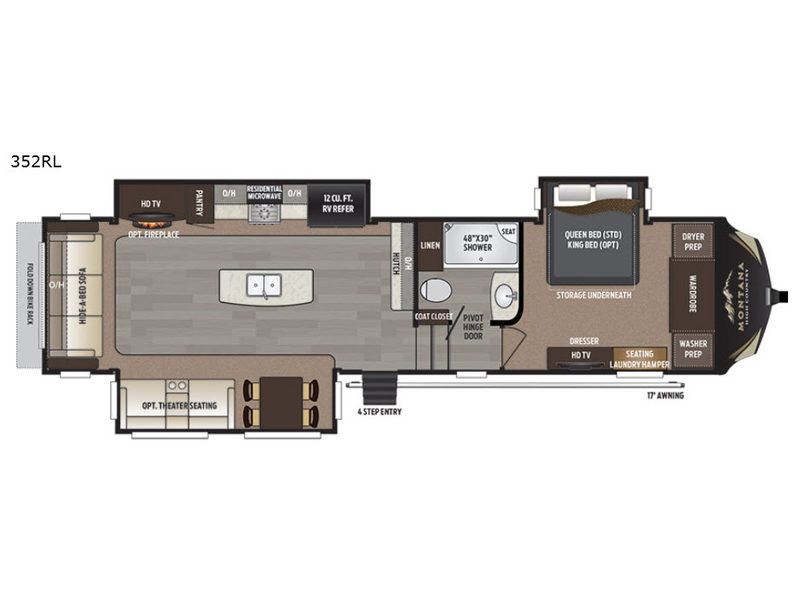

352RL Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 37 ft 5 in | Ext Width | 8 ft |
Ext Height | 12 ft 9 in | Hitch Weight | 2285 lbs |
Dry Weight | 10805 lbs | Cargo Capacity | 3480 lbs |
Fresh Water Capacity | 64 gals | Grey Water Capacity | 98 gals |
Black Water Capacity | 49 gals | Tire Size | ST235/80R16E |
Furnace BTU | 39770 btu | Available Beds | Queen |
Refrigerator Type | 4 Door | Refrigerator Size | 12 cu ft |
Cooktop Burners | 3 | Shower Size | 48" x 30" |
Number of Awnings | 1 | Water Heater Capacity | 18 gal |
Water Heater Type | Gas/Electric | TV Info | LR HD LED, BR 32" HD LED |
Awning Info | Power | Washer/Dryer Available | Yes |
Shower Type | Shower w/Seat | VIN | 4YDF35221JA740615 |
Description
As you enter notice the coat closet to your right and how open the main living space is with dual opposing slides fully extended to your left. There is a slide out dinette with four chairs and optional theater seating to the left of the door. Along the rear wall find a hide-a-bed sofa with overhead cabinets that stretch the entire width of the fifth wheel. Adjacent to the hide-a-bed there is an entertainment center slide with HDTV and optional fireplace below. This slide also features a pantry for food storage needs, counter space, a three burner range with overhead residential microwave oven, and a RV refrigerator. A convenient kitchen island offers additional storage and counter space, plus it is where you will find the double sink for cleaning up. A nice hutch is located along the interior wall straight in from the entry door for storage.
Head up the steps to a side aisle bath and front bedroom. Inside enjoy the convenience of a linen cabinet, toilet, sink, and 48" x 30" shower with seat.
The front master bedroom is behind the door at the head of the hall and provides a welcome retreat with a queen or optional king bed slide including storage beneath the bed. A dresser is found opposite the bed along the curb side wall along with a 32" HDTV, a seating area, and the front wall features a wardrobe with washer and dryer prep, plus so much more!
Features
Standard Features (2018)
Living Area
- Brushed nickel cabinet hardware
- 6' 6" Tall main slide outs
- Shaw carpet with R2X protection
- Flush mounted LED interior lights (Residential Living Package)
- Tri-Fold hide-a-bed sofa (Residential Living Package)
- Solid hardwood slideout fascia
- Ceiling crown molding
- Beauflor flooring with 7 year cold cracking warranty
- Flush mounted LED interior lights (Residential Living Package)
- Roller Shades (Residential Living Package)
- Theater seating w/ power recliners and USB charging (Residential Living Package)
Kitchen
- Full extension drawer guides
- Subway tile backsplash
- Solid surface flush mount sink covers (Residential Living Package)
- 30" Over-the-range microwave (Residential Living Package)
- High output range with automatic igniter and flush mount range cover (Residential Living Package)
- Power vent fan w/ rain sensor and wall controls (Four Season Living Package)
- Pull out kitchen trash can (Select Models)
- Solid surface kitchen countertop (Residential Living Package)
- Sink covers storage below kitchen sink (Residential Living Package)
- 22" Oven w/ broiler (Residential Living Package)
- Booth dinette with easy-lift seats (Residential Living Package)
- Motion sensor LED light in pantry (Select Models) (Residential Living Package)
Home Entertainment
- Climatesmart & Vibrationsmart Furrion studio collection w/ single remote control
- Studio speakers
- RG-6 Satellite prep (Residential Living package)
- 39" or 48"/50" HD LED TV w/climatesmart & vibrationsmart (Residential Living package)
- DV3300 AM/FM/CD/DVD Player w/ app control & Bluetooth
- Marine grade exterior speakers
- Winegard Rayzar Z-1 HD Digital TV antenna (Residential Living package)
- Master bedroom 32" HD LED TV w/ climatesmart & vibrationsmart (Residential Living package)
Bedroom
- 60" x 80" Queen bed
- Reading lights over bed
- Wood TV cabinet
- Bedside USB charging station (Residential Living package)
- Prepped for combo or stackable washer/dryer w/ separate 20AMP circuits for each appliance (Residential Living package)
- Shiplap design headboard
- Massive storage under bed
- High density foam mattress (Residential Living package)
- Bedside night stands (Residential Living package)
- Magnetic bedroom door holder (Residential Living package)
- Motion sensor LED light in bedroom closet (Residential Living package)
Bathroom
- Skylight over shower
- Undermount sink
- (3) Drawers (1) door vanity
- Seamless 48" x 30" fiberglass shower (Residential Living package)
- 50 Amp service (Residential Living package)
- 12 Gallon DSI Gas/Electric water heater w/ 16.2 Gal. Per HR. fast recovery
- Seamless countertop
- Brushed nickel shower head and faucet
- Porcelain foot flush toilet (Residential Living package)
- 65Amp Converter (Residential Living package)
Construction
- Unified wiring standard: Each wire color-coded and numbered
- Welded aluminum framed walls and floors
- Seamless plyveneer floor decking
- Powder coated 12" steel I-beam frame (362, 364, 365, 374, 375, 378, 379, 380, 381, 384, 385)
- Residential roof rafters
- Laminated sidewalls with dual layered luan and metal backing strips to anchor interior cabinets
- Powder coated 10" steel I-beam frame (305, 310, 320, 321, 344, 345, 330, 331)
- Seamless roto-cast holding tanks
Four Seasons Living Package
- 35,000 BTU furnace
- Whisper quiet main air conditioner system
- 16,500 BTU Heat pump on main air conditioner
- Two attic vents for cross ventilation
- R-21 Insulated floor
- R-11 Insulated sidewalls
- Enclosed and heated low point drains
- Residential ceiling fan
- 15,000 BTU Air conditioner
- Wired and framed for 2nd air conditioner
- Zero degree tested and rated
- R-38 Equivalent insulated roof
- R-15 Insulated slide out floors
- Insulated and heated holding tanks and dump valves
- 12V Electric fresh water tank heater
- 34" LED fireplace that can heat 500 Sq. Ft. (5000 BTU) controlled by a single remote
Towing
- Max Turn front cap and radius frame w/ hitch vision
- Mor/Ryde CRE3000 suspension
- Bronze bushings and 1/2" shackle links
- 6000 LB Dexter E-Z lube axles w/ self adjusting brakes (305, 310, 320, 321, 344, 345, 330, 331)
- Back-Up lights
- Prepped for rear view camera
- F-Range tires with 5 year manufacturer wararnty
- 16" 8-Lug aluminum wheels (110 PSI)
- 7000 LB Dexter E-Z lube axles w/ self adjusting brakes (362, 364, 365, 374, 375, 378, 379, 380, 381, 384, 385)
- Undermount spare tire and carrier
Exterior
- Automotive paint with 2 layers of clear coat on front cap
- Automotive frameless safety glass windows
- Rear roof ladder
- Extra large (30" wide by 78" tall) entry door w/ friction hinge (Residential Living package)
- Four step aluminum entry steps (Residential Living package)
- Motion sensor lights in toy hauler garage (Residential Living package)
- High gloss gel coated sidewalls and rear wall
- Fold away entry handle
- Slam latch pass thru storage compartment doors
- Enormous drop frame pass thru storage compartment (Residential Living package)
- Motion sensor LED lights in pass thru storage compartment (Residential Living package)
Easy Set Up
- 12V Electric patio awning w/ LED lights
- Heated central exterior water and convenience center
- Patio security light
Interior Options
- King Bed (N/A 362RD, 380/381TH)
- Residential French door refrigerator with ice maker and 1000 Watt inverter: (331, 345, 375, 379, 381, 385) - MANDATORY
- Free standing dinette with 4 chairs
- 12 CU. FT. 4 door RV refrigerator: (305, 310, 340, 330, 344, 362, 374, 378, 380, 384) - MANDATORY
- Power vent fan with rain sensor in bathroom
- Power vent fan with rain sensor in rear bathroom (362, 364, 365)
- Power vent fan with rain sensor in bedroom (N/A with 2nd AC)
Exterior Options
- Low profile ducted 2nd 13,500 BTU A/C: (374, 375, 380, 381) - MANDATORY
- 6 Point automatic leveling system (362, 364, 365, 374, 375, 378, 379, 380, 381, 384, 385) - MANDATORY
- Slideout awnings package: Quad Slide Models (344/345RL, 364/365BR, 374/375FL, 378/379RD, 380/381TH, 384/385BR)
- Onan Marquis gold 5.5 KW LP Generator
- 4 Point electric automatic leveling system (305, 310, 320, 321, 344, 345, 330, 331) - MANDATORY
- Dual pane frameless windows
- Slideout awnings package: Triple Slide Models (305RL, 310RE, 320/321MK, 330/331RL)
- Slideout awnings package: Five Slide Models (362RD)
- Generator ready (Onan 5.5 KW Specifications)
- 2" Receiver hitch - MANDATORY
Packages
- Residential Living Package - MANDATORY
- Four Season Living Package - MANDATORY
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
